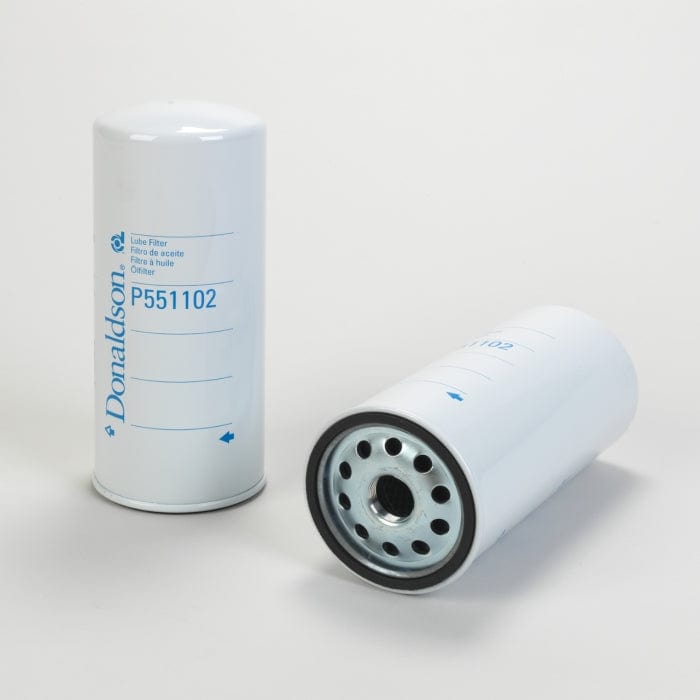

Lube Filter, Spin-On Full Flow - Donaldson P551102

Attributes

• Outer Diameter: 110 mm (4.33 inch)
• Thread Size: 1 1/8-16 UN
• Length: 256 mm (10.08 inch)
• Gasket OD: 102 mm (4.02 inch)
• Gasket ID: 92 mm (3.62 inch)
• Efficiency 50%: 20 micron
• Efficiency Test Std: SAE J1858
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 2.5 bar (36 psi)
• Media Type: Cellulose
• Collapse Burst: 4 bar (58 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: DEUTZ 1174420

Packaged Dimensions

• Packaged Length: 0.118 m (4.72 inch)
• Packaged Width: 0.118 m (4.72 inch)
• Packaged Height: 0.276 m (11.02 inch)
• Packaged Weight: 1.240 kg (2.73 lb)
• Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069100-09
• HTS Code: 8421230090
• UPC Code: 742330043639
