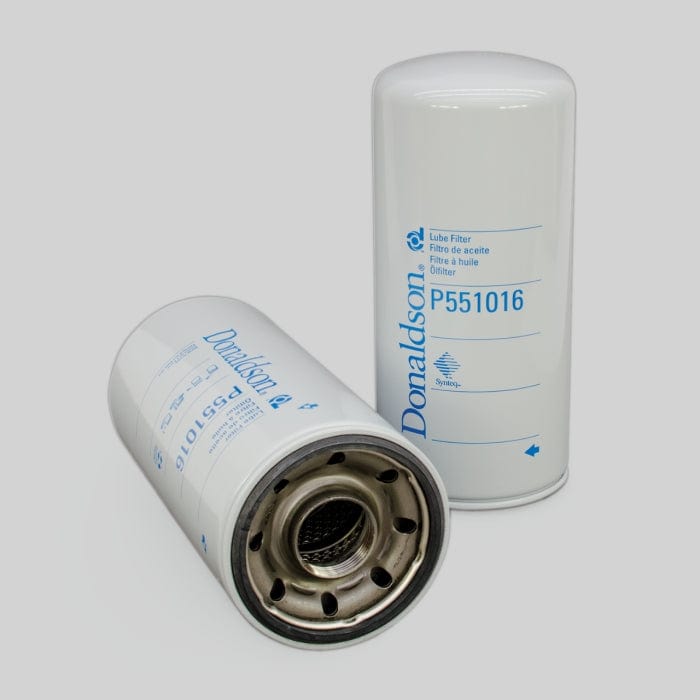

Lube Filter, Spin-On Full Flow - Donaldson P551016
Lube Filter, Spin-On Full Flow - Donaldson P551016
Regular price
£29.84
Regular price
Sale price
£29.84
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551016
Lube Filter, Spin-On Full Flow| Outer Diameter | 4.65 inch (118 mm) |
| Thread Size | 1 5/8-12 UN |
| Length | 10.24 inch (260 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | ISO 4548-12 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 26 psi (1.8 bar) |
| Bypass Valve Setting HR | 30 psi (2.1 bar) |
| Media Type | Synthetic |
| Collapse Burst | 149 psi (10.3 bar) |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Thread Size: 1 5/8-12 UN
- Length: 260 mm (10.24 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 15 micron
- Efficiency Test Std: ISO 4548-12
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.8 bar (26 psi)
- Bypass Valve Setting HR: 2.1 bar (30 psi)
- Media Type: Synthetic
- Collapse Burst: 10.3 bar (149 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.158 m (6.30 inch)
- Packaged Weight: 1.378 kg (3.04 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330962626
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| LEYLAND-DAF (LDV) | 10906228 | |
| LEYLAND-DAF (LDV) | 10906288 | |
| LEYLAND-DAF (LDV) | 709932 | |
| MACK | 2191P552100 | |
| NEW FLYER INDUSTRIES LTD | 945045 | |
| ORENSTEIN & KOPPEL | 8024609 | |
| ORION BUS INDUSTRIES | A0504947BL | |
| PREVOST CAR | 23530573 | |
| SANDVIK | 69037162 | |
| TAMROCK | 4521030 | |
| TAMROCK | 04521030 | |
| TECALEMIT-TJ | FP3349 | |
| TRUCK CARE | 7505010 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688704 | |
| UNIVERSAL COACH PARTS | T081043 | |
| VMC | XL552100 | |
| VMC | LF552100 | |
| VOLVO | 3915586 |
