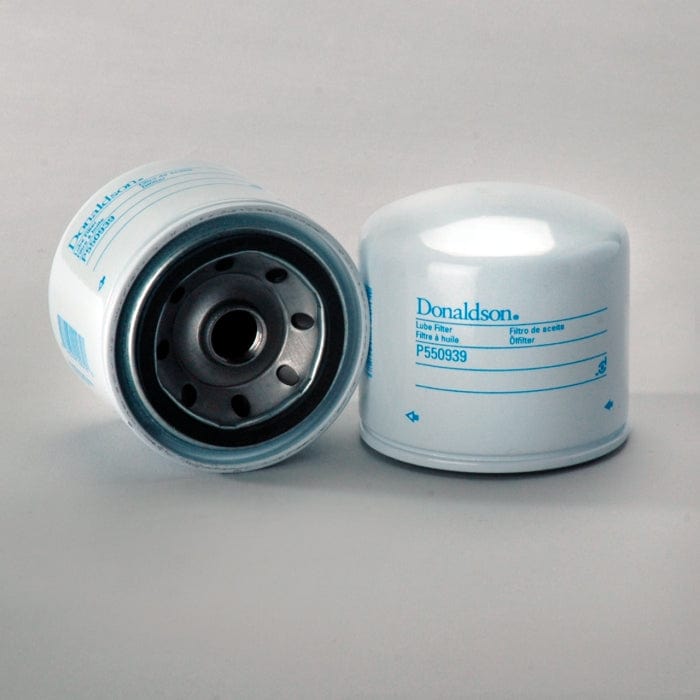

Lube Filter, Spin-On Full Flow - Donaldson P550939

Lube Filter, Spin-On Full Flow - Donaldson P550939

£8.62
£8.62
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550939

Lube Filter, Spin-On Full Flow
Outer Diameter 3.66 inch (93 mm)
Thread Size 3/4-16 UN
Length 3.39 inch (86 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Efficiency Test Std ISO 16889
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 15 psi (1 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 3/4-16 UN
  • Length: 86 mm (3.39 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: ISO 16889
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.8 bar (12 psi)
  • Bypass Valve Setting HR: 1 bar (15 psi)
  • Media Type: Cellulose
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.079 m (3.15 inch)
  • Packaged Weight: 0.363 kg (0.80 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Poland
  • HTS Code: 8421230090
  • UPC Code: 742330200728
