• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P550794
1 1

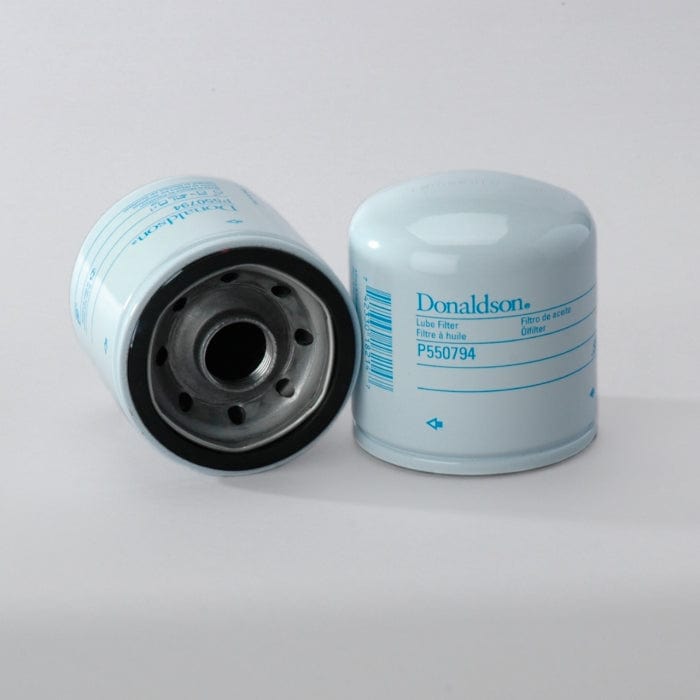

Lube Filter, Spin-On Full Flow - Donaldson P550794

Lube Filter, Spin-On Full Flow - Donaldson P550794

£6.75
£6.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550794

Lube Filter, Spin-On Full Flow
Outer Diameter 2.99 inch (76 mm)
Thread Size M22 x 1.5
Length 3.27 inch (83 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.36 inch (60 mm)
Efficiency 99% 40 micron
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 17 psi (1.2 bar)
Bypass Valve Setting HR 23 psi (1.6 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 76 mm (2.99 inch)
  • Thread Size: M22 x 1.5
  • Length: 83 mm (3.27 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 60 mm (2.36 inch)
  • Efficiency 99%: 40 micron
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.2 bar (17 psi)
  • Bypass Valve Setting HR: 1.6 bar (23 psi)
  • Media Type: Cellulose
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.089 m (3.54 inch)
  • Packaged Weight: 0.309 kg (0.68 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330182147

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF48
AC DELCO PF48E
ALCO SP960
CHEVROLET 89017524
CHRYSLER 4892339AA
CLEAN DO290
COOPERS LSF5122
FEDERATED PG2222F
FIAAM FT4663
FISPA FOE194
GIESSE CLH426
GMC 12640445
GMC 19303975
GMC 89017524
GREYFRIARS 9070S
P.B.R. BC1078
SUZUKI 1651078J01
VM MOTORI 41150031A
VM MOTORI 4115031
VMC LF550794
WARNER & SWASEY WPH48
