• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P550758
1 1

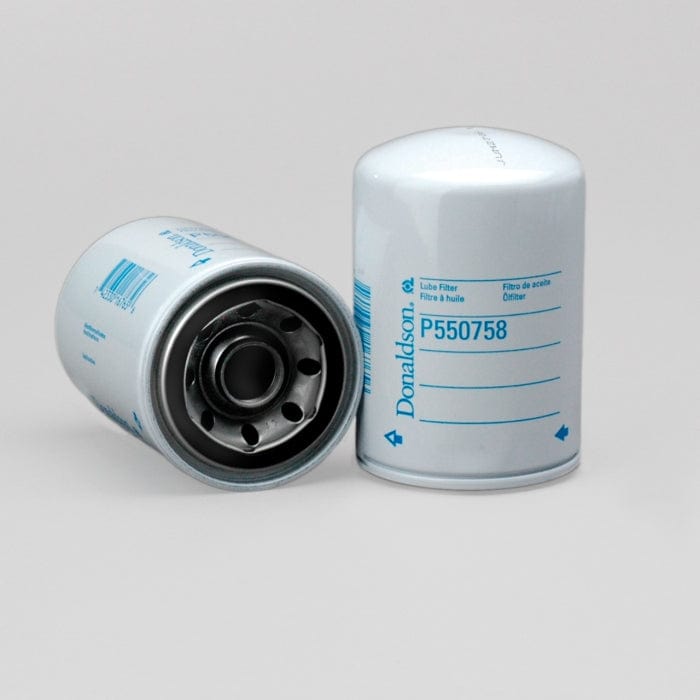

Lube Filter, Spin-On Full Flow - Donaldson P550758

Lube Filter, Spin-On Full Flow - Donaldson P550758

£10.02
£10.02
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550758

Lube Filter, Spin-On Full Flow
Outer Diameter 3.66 inch (93 mm)
Thread Size M24 x 1.5
Length 5.35 inch (136 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 40 micron
Bypass Valve Yes
Bypass Valve Setting LR 17 psi (1.2 bar)
Bypass Valve Setting HR 23 psi (1.6 bar)
Media Type Cellulose
Collapse Burst 145 psi (10 bar)
Type Full-Flow
Style Spin-On
Primary Application JOHN DEERE RE519626
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: M24 x 1.5
  • Length: 136 mm (5.35 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 40 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.2 bar (17 psi)
  • Bypass Valve Setting HR: 1.6 bar (23 psi)
  • Media Type: Cellulose
  • Collapse Burst: 10 bar (145 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: JOHN DEERE RE519626

Packaged Dimensions

  • Packaged Length: 0.090 m (3.60 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.135 m (5.40 inch)
  • Packaged Weight: 0.486 kg (1.07 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330167656

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DOOSAN 22545867
JOHN DEERE RE519626
JOHN DEERE RE518977
JOHN DEERE DZ112582
KOHLER GM34935
KOHLER 330560632
LIEBHERR 7090658
RAPIDPARTS INC P550753
SULLAIR B7306
VMC LF550758

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AHLMANN AX100 - LOADER WHEELED AX SERIES JOHN DEERE 4024T -
AHLMANN AX70 - LOADER WHEELED AX SERIES JOHN DEERE 4024H -
AHLMANN AX85 - LOADER WHEELED AX SERIES JOHN DEERE 4024T -
AHLMANN AX850 - LOADER WHEELED AX SERIES JOHN DEERE 4024H -
JOHN DEERE 244J - LOADER - - 244J -
