• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P550719
1 1

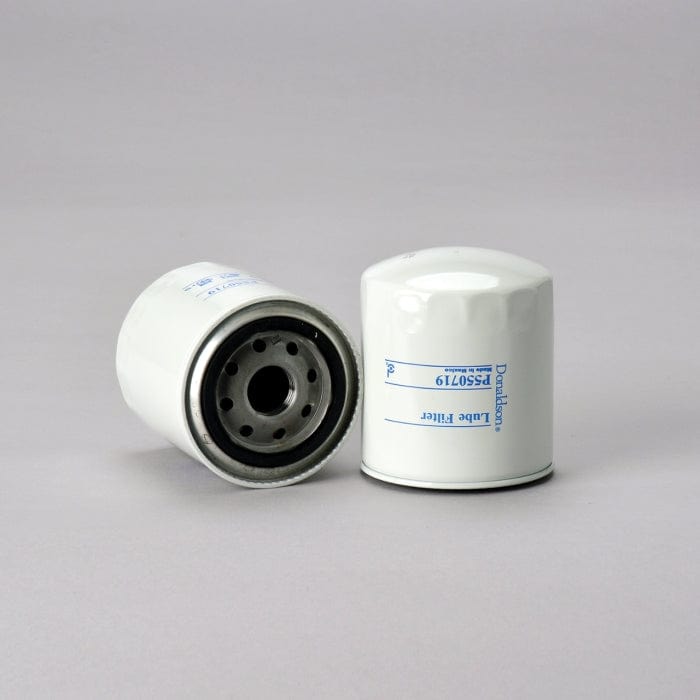

Lube Filter, Spin-On Full Flow - Donaldson P550719

Lube Filter, Spin-On Full Flow - Donaldson P550719

£12.13
£12.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550719

Lube Filter, Spin-On Full Flow
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Thread Size: 1-12 UN
  • Length: 107 mm (4.21 inch)
  • Gasket OD: 71 mm (2.80 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: ISO 4572
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.4 bar (20 psi)
  • Bypass Valve Setting HR: 1.7 bar (25 psi)
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: CASE/CASE IH 3136046R93

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.125 m (5.00 inch)
  • Packaged Height: 0.103 m (4.10 inch)
  • Packaged Weight: 0.424 kg (0.94 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330043158

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF2158
AMERICAN MOTORS CORPORATION SFO6240
AMERICAN MOTORS CORPORATION OC22010
AMERICAN PARTS 92206
ASAHI KO1577
ATLAS COPCO 29005351
AVELING-BARFORD BT536
BIG A 91027
BIG A 92206
CASE/CASE IH 3136046R91
CASE/CASE IH 3136046R93
CASE/CASE IH 3136046R92
EXMAN OC22010
EXMAN SFO6240
GREYFRIARS 935S1
GREYFRIARS 935S
INTERNATIONAL 3136046R93
JOHN DEERE 3136046R93
KOMATSU 6002114241
KOMATSU 6002116243
KOMATSU 6002116230
KOMATSU 6002116241
KOMATSU 6002116242
KOMATSU 6002115240
KOMATSU 6002116240
KRALINATOR L106
MANITOU 554990
ONAN 1860843
P.B.R. BC1167
RENAULT VI 6005000929
VMC LF550719
