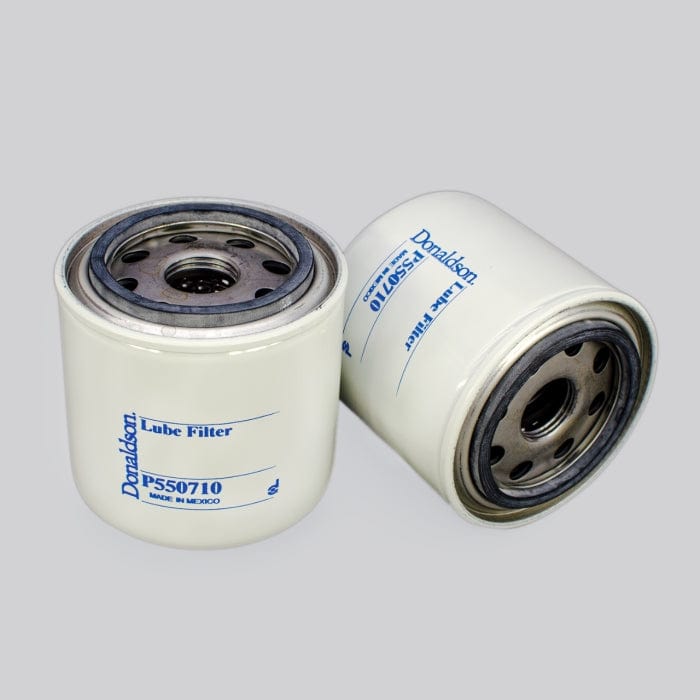

Lube Filter, Spin-On Full Flow - Donaldson P550710
Lube Filter, Spin-On Full Flow - Donaldson P550710
Regular price
£13.83
Regular price
Sale price
£13.83
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550710
Lube Filter, Spin-On Full FlowShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 94 mm (3.70 inch)
- Thread Size: 1-12 UN
- Length: 95 mm (3.74 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: ISO 4572
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.4 bar (35 psi)
- Bypass Valve Setting HR: 2.6 bar (38 psi)
- Collapse Burst: 5.2 bar (75 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.099 m (3.94 inch)
- Packaged Weight: 0.431 kg (0.95 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330043066
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | KO1577 | |
| AMERICAN MOTORS CORPORATION | KO1577 | |
| BIG A | 92768 | |
| CATERPILLAR | 3I2020 | |
| DITCH WITCH | 195814 | |
| GREYFRIARS | 924S | |
| GROVE | 9414100776 | |
| GUD | Z216 | |
| JCB | 3291550 | |
| KOMATSU | 6002116140 | |
| KOMATSU | 6002116140L | |
| VERMEER | 52683001 | |
| VMC | LF550710 | |
| ZETOR | 0040571203 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KAESER 120 | - | COMPRESSOR | - | DEUTZ F4L913 | - |
| KAESER 120 | - | COMPRESSOR | - | DEUTZ F4L912 | - |
| KAWASAKI KSS 50Z | - | LOADER WHEELED | - | DEUTZ F4L912 | - |
| KOMATSU 4D95 | - | ENGINE | - | - 4D95 | - |
| KOMATSU 4D95L | - | ENGINE | - | - 4D95L | - |
| KOMATSU 4D95S | - | ENGINE | - | - 4D95S | - |
| KOMATSU 6D95L | - | ENGINE | - | - 6D95L | - |
| KOMATSU FD20 | - | FORKLIFT | FG SERIES | ISUZU G207 | - |
| KOMATSU FD20-10 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S | - |
| KOMATSU FD20L-10 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S | - |
| KOMATSU FD20S5 | - | FORKLIFT | - | KOMATSU 4S955 | - |
| KOMATSU FD20SV | - | FORKLIFT | FG SERIES | - FD20SV | - |
| KOMATSU FD20V | - | FORKLIFT | FD SERIES | - FD20V | - |
| KOMATSU FD23-10 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S | - |
| KOMATSU FD25-1 | - | FORKLIFT | FD SERIES | KOMATSU C175 | - |
| KOMATSU FD25L-10 | - | FORKLIFT | FD SERIES | KOMATSU 4D95 | - |
| KOMATSU FD25S | - | FORKLIFT | - | KOMATSU 4D95S | - |
| KOMATSU FD25S-5 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S | - |
| KOMATSU FD25SV | - | FORKLIFT | FD SERIES | - FD25SV | - |
| KOMATSU FD30-10 | - | FORKLIFT | - | - FD30-10 | - |
| KOMATSU FD30-11 | - | FORKLIFT | FD SERIES | KOMATSU 4D95S-1 | - |
| KOMATSU FD30H-11 | - | FORKLIFT | FD SERIES | - FD30H-11 | - |
| KOMATSU FD30S-11 | - | FORKLIFT | FG SERIES | - FD30S-11 | - |
| KOMATSU FD30S-5 | - | FORKLIFT | - | - FD30S-5 | - |
| KOMATSU FD30SV11 | - | FORKLIFT | - | - FD30SV11 | - |
| KOMATSU FD35 | - | FORKLIFT | FD SERIES | MITSUBISHI 6DR51 | - |
| KOMATSU FD40-3 | - | FORKLIFT | - | MITSUBISHI 6DR51 | - |
| KOMATSU FD40-4 | - | FORKLIFT | FD SERIES | - FD40-4 | - |
| KOMATSU FD45-4 | - | FORKLIFT | - | KOMATSU P40 | - |
| KOMATSU FD45Z-4 | - | FORKLIFT | - | - FD45Z-4 | - |
| KOMATSU FG20 | - | FORKLIFT | FG SERIES | NISSAN GS | - |
| KOMATSU FG25S | - | FORKLIFT | FG SERIES | ISUZU GL201 | - |
| KOMATSU FG30 | - | FORKLIFT | FG SERIES | NISSAN H20 | - |
| KOMATSU FG30S-11 | - | FORKLIFT | FG SERIES | - FG30S-11 | - |
| LINDE H20 | - | FORKLIFT | - | DEUTZ F3L912 | - |
| LINDE H30 | - | FORKLIFT | - | DEUTZ F4L912 | - |
| LINDE H30 | - | FORKLIFT | - | DEUTZ F3L912 | - |
| VERMEER 1600 | - | CHIPPER | - | DEUTZ F4L912 | - |
| VERMEER 2465 | - | CHIPPER | - | DEUTZ F3L912 | - |
| VERMEER M475A | - | TRENCHER | - | DEUTZ F4L912 | - |
