• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P550708
1 1

Lube Filter, Spin-On Full Flow - Donaldson P550708

Lube Filter, Spin-On Full Flow - Donaldson P550708

£24.35
£24.35
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

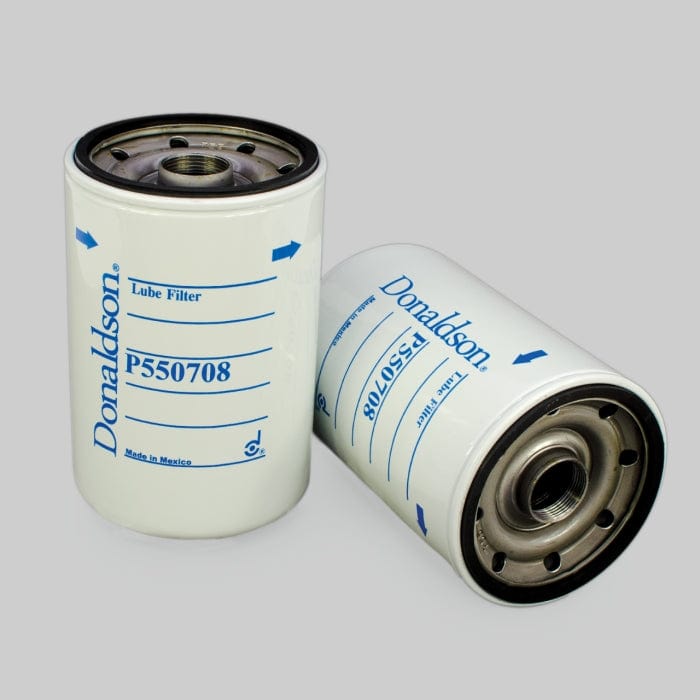

Donaldson P550708

Lube Filter, Spin-On Full Flow
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: 1 1/8-16 UN
  • Length: 167 mm (6.57 inch)
  • Gasket OD: 100 mm (3.94 inch)
  • Gasket ID: 91 mm (3.58 inch)
  • Efficiency 99%: 45 micron
  • Efficiency Test Std: ISO 4572
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.9 bar (28 psi)
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: KOMATSU 6134515120

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.158 m (6.30 inch)
  • Packaged Weight: 0.869 kg (1.92 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330043059

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92844
BEML 31Z5180443
BIG A 92844
CATERPILLAR 3I2019
KOMATSU 6134515120
KOMATSU 6134515121
KRALINATOR L327
VMC LF550708

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
KOMATSU BR300S - CRUSHER - - BR300S -
KOMATSU D57S-1B - DOZER TRACKED - - D57S-1B -
KOMATSU GD505A-3 - GRADER - KOMATSU S6D105-1JJ -
KOMATSU GD515A-1 - GRADER - KOMATSU S6D105-1 -
KOMATSU GD525 - GRADER - KOMATSU S6D105-1 -
