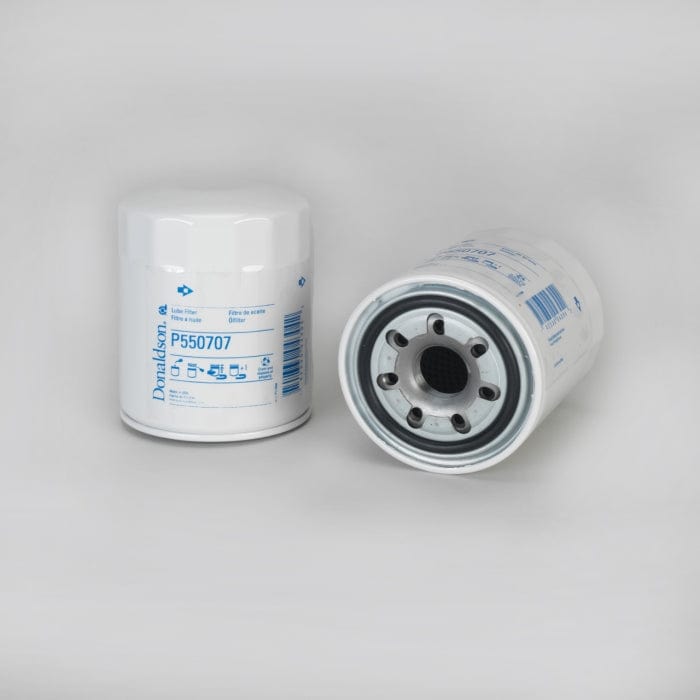

Lube Filter, Spin-On Full Flow - Donaldson P550707
Lube Filter, Spin-On Full Flow - Donaldson P550707
Regular price
£80.08
Regular price
Sale price
£80.08
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550707
Lube Filter, Spin-On Full FlowShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: M30 x 1.5
- Length: 140 mm (5.51 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 75 mm (2.95 inch)
- Efficiency 99%: 48 micron
- Efficiency Test Std: ISO 4572
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.8 bar (12 psi)
- Bypass Valve Setting HR: 1 bar (15 psi)
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.155 m (6.20 inch)
- Packaged Width: 0.158 m (6.30 inch)
- Packaged Height: 0.165 m (6.60 inch)
- Packaged Weight: 0.935 kg (2.06 lb)
- Packaged Volume: 0.004 m3 (0.15 ft3)
Other Information
- Country of Origin: Korea
- Republic of:
- NMFC Code: 069100-08
- HTS Code: 8421230090
- UPC Code: 742330043042
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2204 | |
| ALCO | SP1000 | |
| ALCOA MARINE | TO115 | |
| AMERICAN MOTORS CORPORATION | TO115 | |
| ASAHI | 115K | |
| ASAHI | TO115 | |
| BERGERAT MONNOYEUR | E6872 | |
| BIG A | 92627 | |
| CATERPILLAR | 3I2115 | |
| COOPERS | LSF5033 | |
| CROSLAND | 2041 | |
| EXXEL PTY LTD | 1464061 | |
| EXXEL PTY LTD | 14640061 | |
| EXXEL PTY LTD | OIL061 | |
| FIAAM | FT5095 | |
| FORD | 9576P550707 | |
| GUD | Z148 | |
| KRALINATOR | L6 | |
| MOTAQUIP | VFL300 | |
| P.B.R. | BC1173 | |
| PURFLUX | LS817 | |
| RAPIDPARTS INC | P550707Q | |
| TOYOTA | 1150100750 | |
| TOYOTA | 1560168010 | |
| UNION CITY BODY | O160 | |
| VMC | LF550707 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MUSTANG 320 | - | SKID STEER LOADER | - | ONAN NH | - |
| TOYOTA 02FDA30 | - | FORKLIFT | - | - 02FDA30 | - |
| TOYOTA 23 | - | FORKLIFT | - | TOYOTA 22H | - |
| TOYOTA 23 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 25 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 2FDC30 | - | FORKLIFT | - | TOYOTA 2J | - |
| TOYOTA 35 | - | FORKLIFT | - | - 35 | - |
| TOYOTA 35 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 3FD33 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA 3FD40 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 3FD50 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 3FG33 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA 3FG35 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 3FG40 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA 3FG50 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 3TD35 | - | FORKLIFT | - | TOYOTA 2D | - |
| TOYOTA 3TD45 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 40 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 45 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA 60 | - | TRUCK | - | TOYOTA 2H | - |
| TOYOTA DYNA HU4 | - | TRUCK | - | - DYNA HU4 | - |
| TOYOTA F45 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA FD45 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA FDC33 | - | FORKLIFT | - | TOYOTA 2H | - |
| TOYOTA FDC35 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA FDC40 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA FDC45 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA FGC33 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA FGE35 | - | FORKLIFT | - | TOYOTA 2F | - |
| TOYOTA JD18 | - | FORKLIFT | - | - JD18 | - |
| TOYOTA LAND CRUISER HJ45 | - | LIGHT TRUCK | - | - LAND CRUISER HJ45 | - |
| TOYOTA LAND CRUISER HJ47 | - | LIGHT TRUCK | - | - LAND CRUISER HJ47 | - |
| TOYOTA SAHARA HJ60 | - | TRUCK | - | TOYOTA 2H | - |
