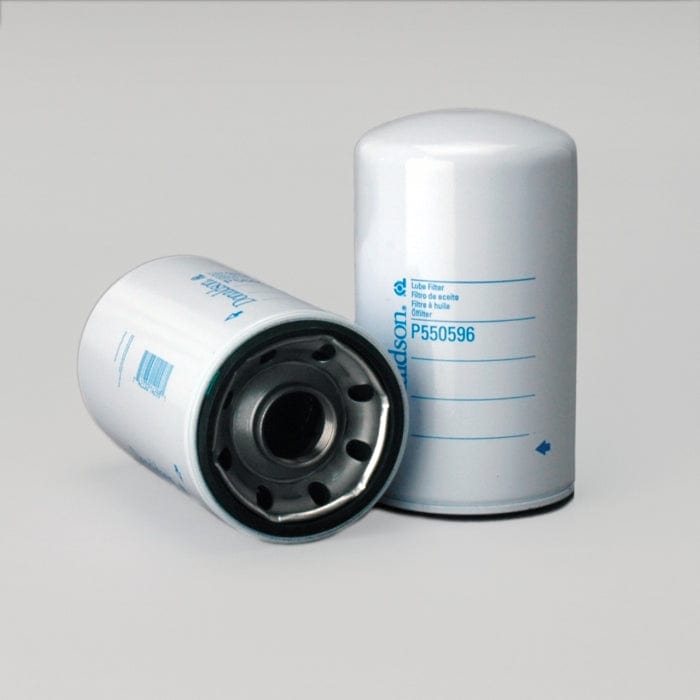

Lube Filter, Spin-On Full Flow - Donaldson P550596

Attributes

• Outer Diameter: 118 mm (4.65 inch)
• Thread Size: 1 1/2-12 UN
• Length: 205 mm (8.07 inch)
• Gasket OD: 110 mm (4.33 inch)
• Gasket ID: 98 mm (3.86 inch)
• Efficiency 99%: 25 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.4 bar (20 psi)
• Bypass Valve Setting HR: 1.52 bar (22 psi)
• Media Type: Cellulose
• Collapse Burst: 6.9 bar (100 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: HITACHI 4448336

Packaged Dimensions

• Packaged Length: 0.117 m (4.68 inch)
• Packaged Width: 0.117 m (4.68 inch)
• Packaged Height: 0.198 m (7.92 inch)
• Packaged Weight: 1.111 kg (2.45 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: Poland
• NMFC Code: 069095-02
• HTS Code: 8421230090
• UPC Code: 742330142981
