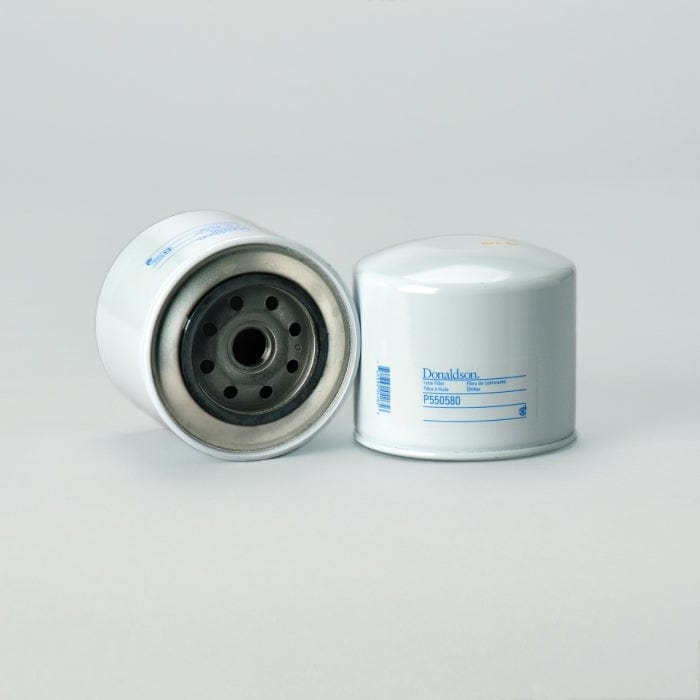

• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P550580
1 1

Lube Filter, Spin-On Full Flow - Donaldson P550580

Lube Filter, Spin-On Full Flow - Donaldson P550580

£12.98
£12.98
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550580

Lube Filter, Spin-On Full Flow
Outer Diameter 4.29 inch (109 mm)
Thread Size 3/4-16
Length 3.78 inch (96 mm)
Gasket OD 2.80 inch (71 mm)
Gasket ID 2.40 inch (61 mm)
Efficiency 99% 45 micron
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 9 psi (0.6 bar)
Bypass Valve Setting HR 12 psi (0.8 bar)
Collapse Burst 75 psi (5.2 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 109 mm (4.29 inch)
  • Thread Size: 3/4-16
  • Length: 96 mm (3.78 inch)
  • Gasket OD: 71 mm (2.80 inch)
  • Gasket ID: 61 mm (2.40 inch)
  • Efficiency 99%: 45 micron
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.6 bar (9 psi)
  • Bypass Valve Setting HR: 0.8 bar (12 psi)
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.089 m (3.54 inch)
  • Packaged Weight: 0.715 kg (1.58 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330042656
