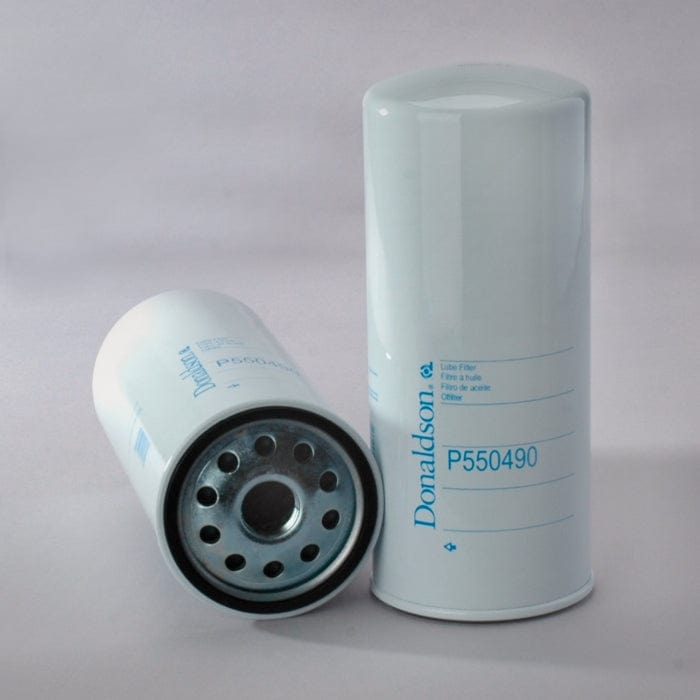

Lube Filter, Spin-On Full Flow - Donaldson P550490

Attributes

• Outer Diameter: 108 mm (4.25 inch)
• Thread Size: 1 1/8-16 UN
• Length: 260 mm (10.24 inch)
• Gasket OD: 104 mm (4.09 inch)
• Gasket ID: 93 mm (3.66 inch)
• Efficiency 50%: 22 micron
• Efficiency 99%: 40 micron
• Efficiency Test Std: ISO 16889
• Bypass Valve: Yes
• Bypass Valve Setting HR: 2.5 bar (36 psi)
• Media Type: Cellulose
• Collapse Burst: 10 bar (145 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: SCANIA 1117285

Packaged Dimensions

• Packaged Length: 0.40 FT
• Packaged Width: 0.40 FT
• Packaged Height: 0.91 FT
• Packaged Weight: 1.271 kg (2.80 lb)
• Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

• Country of Origin: Poland
• NMFC Code: 069095-02
• HTS Code: 8421230090
• UPC Code: 742330115725
