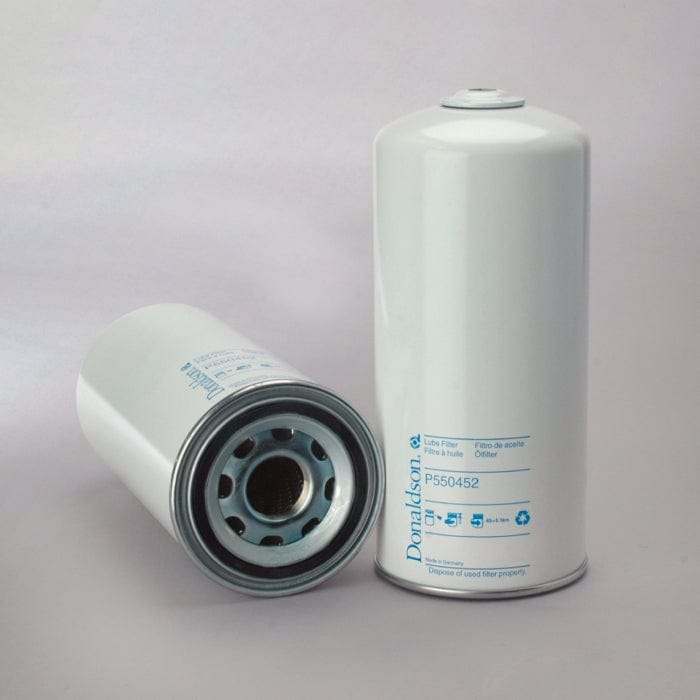

Lube Filter, Spin-On Full Flow - Donaldson P550452

Lube Filter, Spin-On Full Flow - Donaldson P550452

£30.40
£30.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550452

Lube Filter, Spin-On Full Flow
Outer Diameter 5.51 inch (140 mm)
Thread Size M42 x 2
Length 11.89 inch (302 mm)
Gasket OD 4.37 inch (111 mm)
Gasket ID 3.98 inch (101 mm)
Efficiency 99% 40 micron
Bypass Valve Yes
Bypass Valve Setting LR 32 psi (2.2 bar)
Bypass Valve Setting HR 41 psi (2.8 bar)
Media Type Cellulose
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Thread Size: M42 x 2
  • Length: 302 mm (11.89 inch)
  • Gasket OD: 111 mm (4.37 inch)
  • Gasket ID: 101 mm (3.98 inch)
  • Efficiency 99%: 40 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.2 bar (32 psi)
  • Bypass Valve Setting HR: 2.8 bar (41 psi)
  • Media Type: Cellulose
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 2.179 kg (4.80 lb)
  • Packaged Volume: 0.007 m3 (0.25 ft3)

Other Information

  • Country of Origin: Germany
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330126554

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH 0451104013
BOSCH-REXROTH 451104013
DAF 1310901
DAF 1296846
DAF 1309511
DAF 1327672
DAF TRP 1529644
DAF TRP 1529643
GT PIECES ET SERVICES 2240078
IVECO 99484067
IVECO 1931100
KNECHT OC289
KNORR-BREMSE K118018N50
KOHLER 230510001
LIEBHERR 10151830
M.D.F. SARL MDL3153
RENAULT VI 5021107419
VMC LF550452

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DAF 85CF.340 1998 TRUCK 85CF DAF XF250M EURO 2, EURO 3
DAF 85CF.380 1998 TRUCK 85CF DAF XF280M EURO 2, EURO 3
DAF 85CF.430 1998 TRUCK 85CF DAF XF315M EURO 2, EURO 3
DAF F95.380XF 1997 TRUCK 95XF DAF XF280M -
DAF F95.380XF 1999 TRUCK 95XF DAF XE280C -
DAF F95.430XF 1997 TRUCK 95XF DAF XF315M -
DAF F95.430XF 1999 TRUCK 95XF DAF XE315C -
DAF F95.480XF 1997 TRUCK 95XF DAF XF355M -
DAF F95.480XF 1999 TRUCK 95XF DAF XE355C -
DAF F95.530XF 1999 TRUCK 95XF DAF XE390C -
