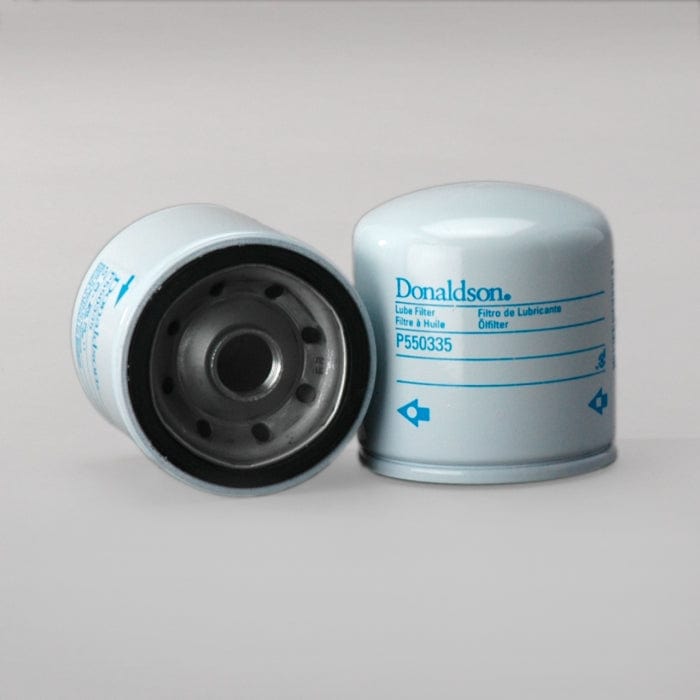

Lube Filter, Spin-On Full Flow - Donaldson P550335

Lube Filter, Spin-On Full Flow - Donaldson P550335

£6.67
£6.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)
 More payment options

Donaldson P550335

Lube Filter, Spin-On Full Flow
Outer Diameter 2.99 inch (76 mm)
Thread Size 3/4-16
Length 3.39 inch (86 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.36 inch (60 mm)
Efficiency 99% 40 micron
Efficiency Test Std SAE J1858
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 11 psi (0.75 bar)
Bypass Valve Setting HR 17 psi (1.2 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 76 mm (2.99 inch)
  • Thread Size: 3/4-16
  • Length: 86 mm (3.39 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 60 mm (2.36 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: SAE J1858
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.75 bar (11 psi)
  • Bypass Valve Setting HR: 1.2 bar (17 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.075 m (3.00 inch)
  • Packaged Width: 0.075 m (3.00 inch)
  • Packaged Height: 0.083 m (3.30 inch)
  • Packaged Weight: 0.311 kg (0.69 lb)
  • Packaged Volume: 0.000 m3 (0.02 ft3)

Other Information

  • Country of Origin: Colombia
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330042236
