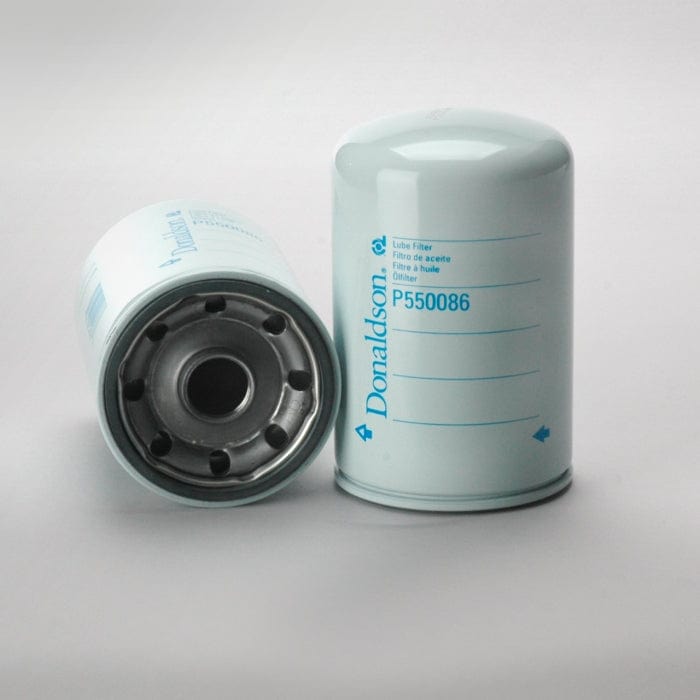

Lube Filter, Spin-On Full Flow - Donaldson P550086

Attributes

• Outer Diameter: 108 mm (4.25 inch)
• Thread Size: 1 1/8-16 UN
• Length: 167 mm (6.57 inch)
• Gasket OD: 99 mm (3.90 inch)
• Gasket ID: 90 mm (3.54 inch)
• Efficiency 50%: 20 micron
• Efficiency Test Std: ISO 4572
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.8 bar (26 psi)
• Bypass Valve Setting HR: 2.1 bar (30 psi)
• Media Type: Cellulose
• Collapse Burst: 10 bar (145 psi)
• Type: Full-Flow
• Style: Spin-On
• Primary Application: KOMATSU 6136515120

Packaged Dimensions

• Packaged Length: 0.105 m (4.20 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.169 m (6.75 inch)
• Packaged Weight: 0.872 kg (1.92 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-06
• HTS Code: 8421230090
• UPC Code: 742330040768
