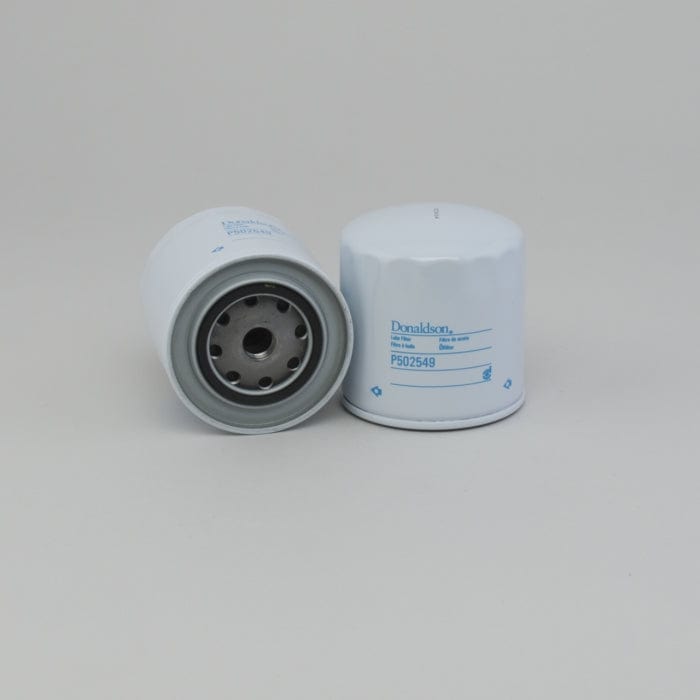

Lube Filter, Spin-On Full Flow - Donaldson P502549
Lube Filter, Spin-On Full Flow - Donaldson P502549
Regular price
£14.44
Regular price
Sale price
£14.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502549
Lube Filter, Spin-On Full FlowShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: 3/4-16
- Length: 115 mm (4.53 inch)
- Gasket OD: 71.5 mm (2.81 inch)
- Gasket ID: 62.4 mm (2.46 inch)
- Efficiency 50%: 9 micron
- Efficiency 95%: 15 micron
- Efficiency 99%: 21 micron
- Efficiency Test Std: ISO 4548-12
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.118 m (4.70 inch)
- Packaged Width: 0.118 m (4.70 inch)
- Packaged Height: 0.125 m (5.00 inch)
- Packaged Weight: 0.942 kg (2.08 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330972908
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 47135704 | |
| CASE/CASE IH | 5081170 | |
| CASE/CASE IH | 19310181 | |
| CASE/CASE IH | 1931018 | |
| FIAAM | FT5265 | |
| NEW HOLLAND | 1931018 | |
| NEW HOLLAND | 5096729 | |
| NEW HOLLAND | 84222017 | |
| NEW HOLLAND | 47135703 | |
| VAPORMATIC | VPD5124 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH JX1060C | - | TRACTOR | JX SERIES | - JX1060C | - |
| CASE/CASE IH JX1075C | - | TRACTOR | JX SERIES | - JX1075C | - |
| CASE/CASE IH JX65 | - | TRACTOR | JX SERIES | - JX65 | - |
| CASE/CASE IH JX70 | - | TRACTOR | - | CASE/CASE IH 8035.25C.939 | - |
| CASE/CASE IH JX80 | - | TRACTOR | JX SERIES, STRADDLE MOUNT | CASE/CASE IH 8045.05R.939 | - |
| CASE/CASE IH JX95 | - | TRACTOR | JX SERIES | - JX95 | - |
| NEW HOLLAND 55-56S | - | TRACTOR | - | FPT INDUSTRIAL 8035.25 | - |
| NEW HOLLAND TD60 | - | TRACTOR | TD SERIES, STRADDLE MOUNT | - TD60 | - |
| NEW HOLLAND TD60D | - | TRACTOR | TD SERIES | - TD60D | - |
| NEW HOLLAND TD65F | - | TRACTOR | TD SERIES | - TD65F | - |
| NEW HOLLAND TD70 | - | TRACTOR | TD SERIES, STRADDLE MOUNT | - TD70 | - |
| NEW HOLLAND TD70D | - | TRACTOR | TD SERIES | - TD70D | - |
| NEW HOLLAND TD75F | - | TRACTOR | TD SERIES | - TD75F | - |
| NEW HOLLAND TD80 | - | TRACTOR | - | FPT INDUSTRIAL 8035.25 | - |
| NEW HOLLAND TD80D | - | TRACTOR | TD SERIES | - TD80D | - |
| NEW HOLLAND TD85F | - | TRACTOR | TD SERIES | - TD85F | - |
| NEW HOLLAND TD90 | - | TRACTOR | TD SERIES, STRADDLE MOUNT | - TD90 | - |
| NEW HOLLAND TD90D | - | TRACTOR | TD SERIES | - TD90D | - |
| NEW HOLLAND TD95 | - | TRACTOR | TD SERIES, STRADDLE MOUNT | - TD95 | - |
| NEW HOLLAND TD95D | - | TRACTOR | TD SERIES | IVECO 8045T | - |
| NEW HOLLAND TT55 | - | TRACTOR | - | TURK TRACTOR 2.9L TA | - |
| NEW HOLLAND TT75 | - | TRACTOR | - | FPT INDUSTRIAL 8045.05 | - |
