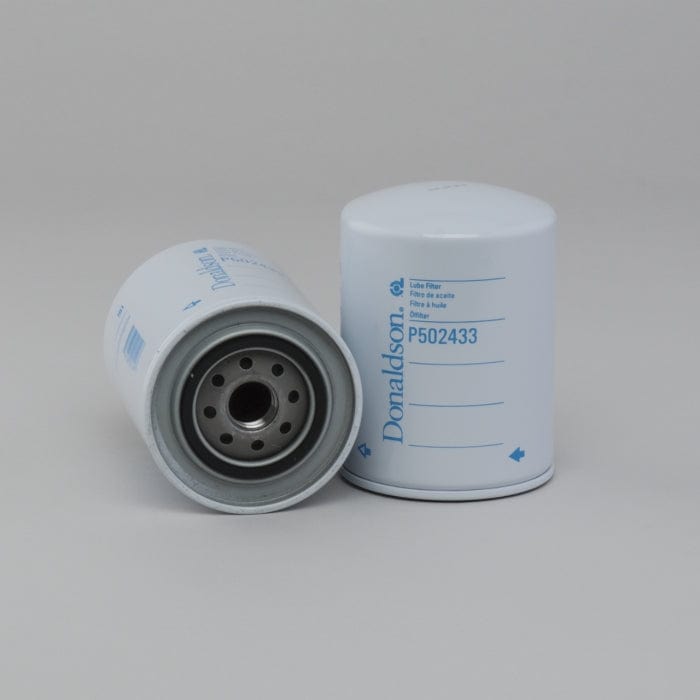

• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P502433
1 1

Lube Filter, Spin-On Full Flow - Donaldson P502433

Lube Filter, Spin-On Full Flow - Donaldson P502433

£12.34
£12.34
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502433

Lube Filter, Spin-On Full Flow
Outer Diameter 4.29 inch (109 mm)
Thread Size M24 x 1.5
Length 5.79 inch (147 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.44 inch (62.1 mm)
Efficiency Beta 75 21 micron
Efficiency Test Std ISO 16889
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Bypass Valve Setting HR 30 psi (2.1 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Primary Application AGCO 836647133
View full details

Specifications

Attributes

  • Outer Diameter: 109 mm (4.29 inch)
  • Thread Size: M24 x 1.5
  • Length: 147 mm (5.79 inch)
  • Gasket OD: 70 mm (2.76 inch)
  • Gasket ID: 62.1 mm (2.44 inch)
  • Efficiency Beta 75: 21 micron
  • Efficiency Test Std: ISO 16889
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Bypass Valve Setting HR: 2.1 bar (30 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: AGCO 836647133

Packaged Dimensions

  • Packaged Length: 0.118 m (4.72 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.158 m (6.30 inch)
  • Packaged Weight: 0.980 kg (2.16 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Türkiye
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330201497

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 836679586
AGCO 836647133
AGCO 6219784M1
ALCO SP1341
BOSCH-REXROTH 0986B01024
BOSCH-REXROTH 9455081035
CASE/CASE IH 162000070700
CASE/CASE IH 87708114
CASE/CASE IH 87660441
CASE/CASE IH 84287923
JCB 02950201
JCB 2950201
MASSEY FERGUSON V836679586
NEW HOLLAND 47108985
NEW HOLLAND 84287923
NEW HOLLAND 47335745
NEW HOLLAND 162000070744
NEW HOLLAND 87708114
SISU 836662580
STEYR-DAIMLER-PUCH 162000081001
STEYR-DAIMLER-PUCH 162000070762
STEYR-DAIMLER-PUCH 162000000000
TEHO OK302
VALMET 836647133
VALMET 836662111
VALMET V836662111
VALMET 5078842
VALTRA 20147133
VALTRA 836647133
VALTRA V836679586
VALTRA V836662580
VAPORMATIC VPD509
