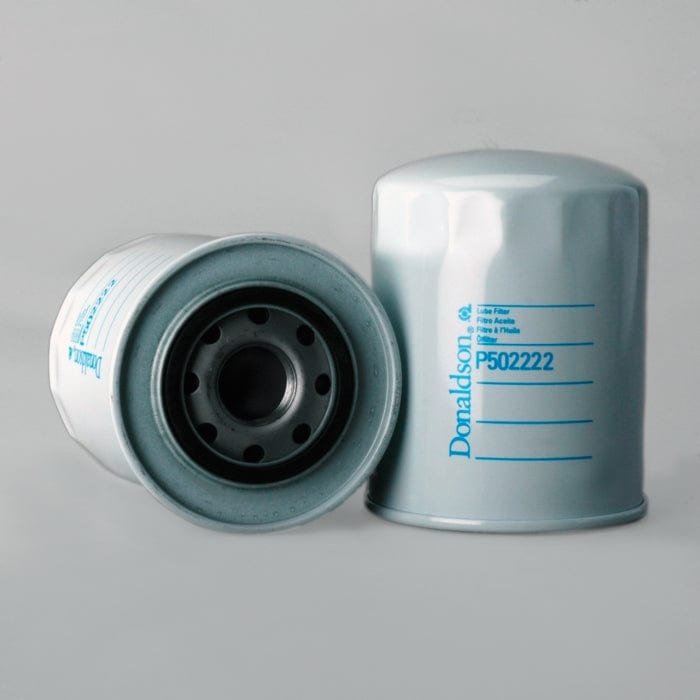

• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P502222
1 1

Lube Filter, Spin-On Full Flow - Donaldson P502222

Lube Filter, Spin-On Full Flow - Donaldson P502222

£15.74
£15.74
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502222

Lube Filter, Spin-On Full Flow
Outer Diameter 4.25 inch (108 mm)
Thread Size M30 x 2
Length 5.63 inch (143 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 50% 16 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Bypass Valve Setting HR 30 psi (2.1 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 108 mm (4.25 inch)
  • Thread Size: M30 x 2
  • Length: 143 mm (5.63 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 50%: 16 micron
  • Efficiency Test Std: JIS D 1611
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Bypass Valve Setting HR: 2.1 bar (30 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.113 m (4.50 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 0.924 kg (2.04 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330110980

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFO0208
EXMAN SFO0208
FIAT 4741274
IVECO 4741274
NEW HOLLAND 1450128
SDMO 330560280
VMC LF502222
