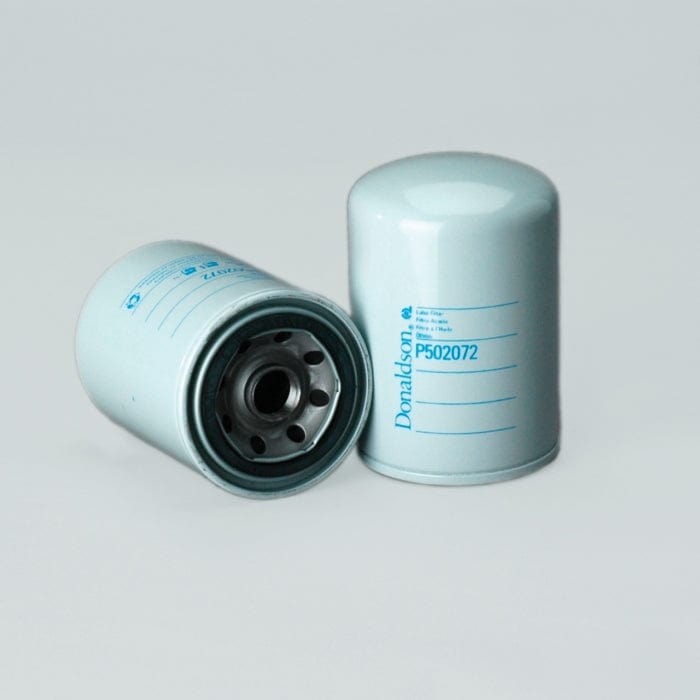

Lube Filter, Spin-On Full Flow - Donaldson P502072
Lube Filter, Spin-On Full Flow - Donaldson P502072
Regular price
£7.33
Regular price
Sale price
£7.33
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502072
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.62 inch (92 mm) |
| Thread Size | M22 x 1.5 |
| Length | 5.47 inch (139 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.48 inch (63 mm) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Media Type | Cellulose |
| Type | Full-Flow |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 92 mm (3.62 inch)
- Thread Size: M22 x 1.5
- Length: 139 mm (5.47 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 63 mm (2.48 inch)
- Efficiency 50%: 20 micron
- Efficiency Test Std: JIS D 1611
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.76 bar (11 psi)
- Bypass Valve Setting HR: 1.17 bar (17 psi)
- Media Type: Cellulose
- Type: Full-Flow
- Style: Spin-On
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.148 m (5.90 inch)
- Packaged Weight: 0.622 kg (1.37 lb)
- Packaged Volume: 0.002 m3 (0.05 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330109946
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 3I2078 | |
| ECHLIN | OF33 | |
| EXMAN | SFO0252 | |
| EXMAN | OC20120 | |
| FIAT | 730390201 | |
| FIAT | 1834113 | |
| FODEN | Y03732901 | |
| FORD | 1782038 | |
| FORD | 78576714AA3A | |
| FORD | 785F6714AA2A | |
| FORD | 785F6714AA3 | |
| FSA | FO1207 | |
| GIF | GL636 | |
| GREYFRIARS | 962S | |
| JCB | 32600117 | |
| LAND ROVER | 36013315 | |
| NANNI DIESEL | 901201142 | |
| ORENSTEIN & KOPPEL | 103880 | |
| TEREX | 1407098 | |
| TEREX | 103880 |
