• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P502057
1 1

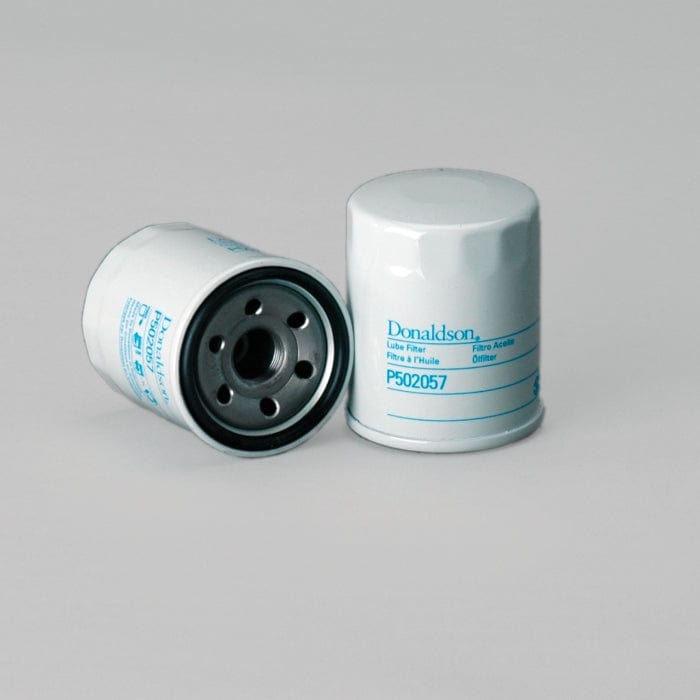

Lube Filter, Spin-On Full Flow - Donaldson P502057

Lube Filter, Spin-On Full Flow - Donaldson P502057

£6.05
£6.05
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502057

Lube Filter, Spin-On Full Flow
Outer Diameter 2.68 inch (68 mm)
Thread Size M20 x 1.5
Length 3.35 inch (85 mm)
Gasket OD 2.56 inch (65 mm)
Efficiency 50% 20 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Primary Application MAZDA FEY014302
View full details

Specifications

Attributes

  • Outer Diameter: 68 mm (2.68 inch)
  • Thread Size: M20 x 1.5
  • Length: 85 mm (3.35 inch)
  • Gasket OD: 65 mm (2.56 inch)
  • Efficiency 50%: 20 micron
  • Efficiency Test Std: JIS D 1611
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.8 bar (12 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: MAZDA FEY014302

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.089 m (3.54 inch)
  • Packaged Weight: 0.277 kg (0.61 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330109823

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION T8306
AMERICAN MOTORS CORPORATION MO5343
AMERICAN MOTORS CORPORATION L5343
AMERICAN MOTORS CORPORATION MO526
AMERICAN MOTORS CORPORATION OF2036
AMERICAN MOTORS CORPORATION SFO1622
AMERICAN MOTORS CORPORATION OC14070
AMSOIL EAO14
BIG A 92357
CASE/CASE IH C413
CHAMP PH2868
DANIEL DOYEN DOF4907
ECHLIN OF92
EXMAN OC14070
EXMAN T8306
EXMAN SFO1622
EXMAN OF2036
EXMAN L5343
EXMAN MO5343
EXMAN MO526
FEDERAL MOTORS FMS2009
FSA FO1058
MAZDA FEY014302
MAZDA ADM52105E
MAZDA B631E14302AA
MAZDA FE3R14302
PURFLUX LS490A
TEHO 4311
UNION CITY BODY C413
VIC C413
VMC LF502057

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FORD ECONOVAN - LIGHT TRUCK - FORD 1.8L -
FORD ECONOVAN - LIGHT TRUCK - FORD 2.0L L4 -
