• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P502049
1 1

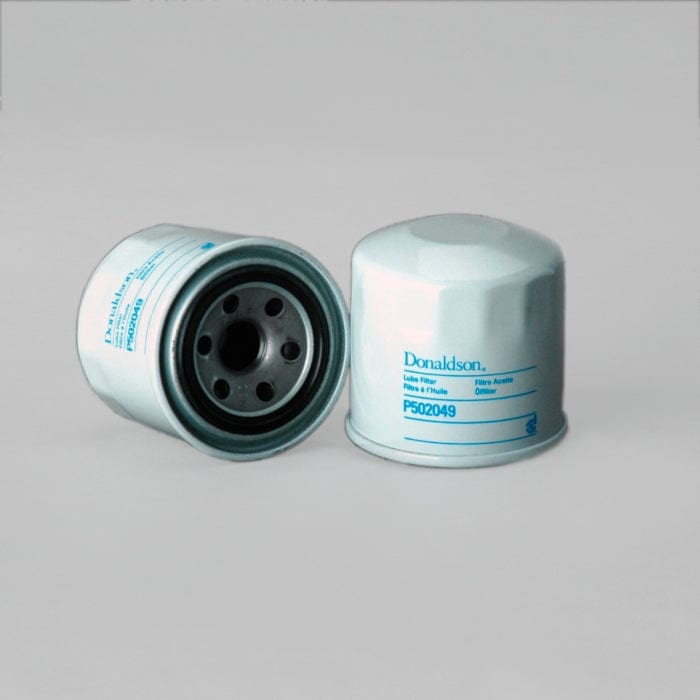

Lube Filter, Spin-On Full Flow - Donaldson P502049

Lube Filter, Spin-On Full Flow - Donaldson P502049

£5.00
£5.00
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502049

Lube Filter, Spin-On Full Flow
Outer Diameter 3.15 inch (80 mm)
Thread Size M20 x 1.5
Length 3.15 inch (80 mm)
Gasket OD 2.48 inch (63 mm)
Gasket ID 2.01 inch (51 mm)
Efficiency 50% 20 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 11 psi (0.76 bar)
Bypass Valve Setting HR 17 psi (1.17 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Primary Application HONDA 15400PR3004
View full details

Specifications

Attributes

  • Outer Diameter: 80 mm (3.15 inch)
  • Thread Size: M20 x 1.5
  • Length: 80 mm (3.15 inch)
  • Gasket OD: 63 mm (2.48 inch)
  • Gasket ID: 51 mm (2.01 inch)
  • Efficiency 50%: 20 micron
  • Efficiency Test Std: JIS D 1611
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.76 bar (11 psi)
  • Bypass Valve Setting HR: 1.17 bar (17 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: HONDA 15400PR3004

Packaged Dimensions

  • Packaged Length: 0.090 m (3.60 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.093 m (3.70 inch)
  • Packaged Weight: 0.359 kg (0.79 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330109786

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION OC12040
AMERICAN MOTORS CORPORATION SFO0459
DAEDONG E520532091
DANIEL DOYEN DOF3403
EXMAN SFO0459
EXMAN OC12040
FEDERAL MOTORS FMS2102
FIAAM FT5447
HONDA 8E20
HONDA 15400PH9004
HONDA 15400PR3003
HONDA 15400PR3000
HONDA 15400PR3004
HONDA 15400PR9004
SEARS T55
TECHNOCAR 2324300
UNION CITY BODY C341
VIC C307

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HONDA E SERIES - GENERATOR SET - HONDA GD1100 -
