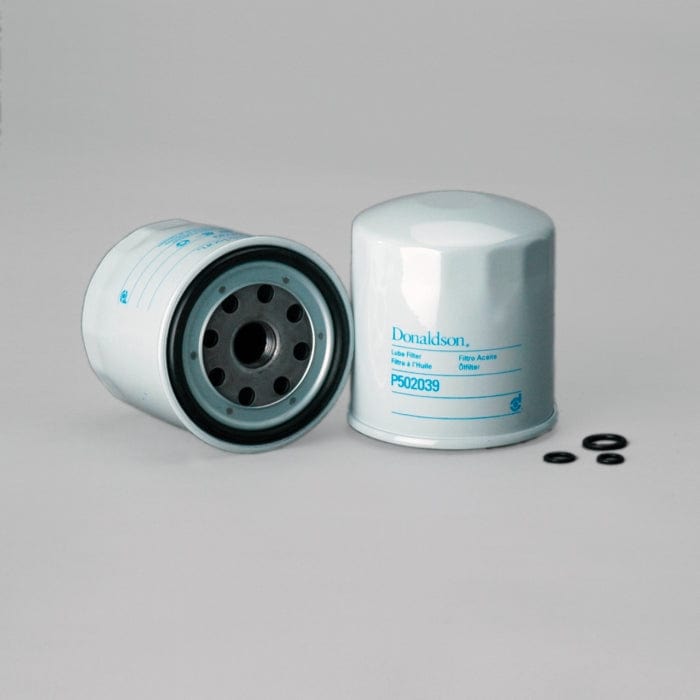

Lube Filter, Spin-On Full Flow - Donaldson P502039
Lube Filter, Spin-On Full Flow - Donaldson P502039
Regular price
£9.02
Regular price
Sale price
£9.02
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502039
Lube Filter, Spin-On Full Flow| Outer Diameter | 3.54 inch (90 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.94 inch (100 mm) |
| Gasket OD | 3.39 inch (86 mm) |
| Gasket ID | 2.99 inch (76 mm) |
| Efficiency 50% | 15 micron |
| Efficiency 95% | 30 micron |
| Efficiency 99% | 40 micron |
| Efficiency Beta 75 | 35 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 13 psi (0.9 bar) |
| Bypass Valve Setting HR | 19 psi (1.3 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Primary Application | ISUZU 8944309830 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 90 mm (3.54 inch)
- Thread Size: M20 x 1.5
- Length: 100 mm (3.94 inch)
- Gasket OD: 86 mm (3.39 inch)
- Gasket ID: 76 mm (2.99 inch)
- Efficiency 50%: 15 micron
- Efficiency 95%: 30 micron
- Efficiency 99%: 40 micron
- Efficiency Beta 75: 35 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.9 bar (13 psi)
- Bypass Valve Setting HR: 1.3 bar (19 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: ISUZU 8944309830
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.115 m (4.60 inch)
- Packaged Weight: 0.572 kg (1.26 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330111000
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCO | SP862 | |
| AMERICAN MOTORS CORPORATION | OC13080 | |
| AMERICAN MOTORS CORPORATION | IO331 | |
| AMERICAN MOTORS CORPORATION | SFO9329 | |
| AMERICAN MOTORS CORPORATION | SFO9830 | |
| AMERICAN MOTORS CORPORATION | T6737 | |
| AMERICAN MOTORS CORPORATION | YC512 | |
| AMERICAN MOTORS CORPORATION | 2171 | |
| AMERICAN MOTORS CORPORATION | IO3314 | |
| BOBCAT | 6659329 | |
| COOPERS | Z1045 | |
| CROSLAND | 2094 | |
| CROSLAND | 5094 | |
| DANIEL DOYEN | DOF3702 | |
| EXMAN | 2171 | |
| EXMAN | T6737 | |
| EXMAN | OC13080 | |
| EXMAN | IO3314 | |
| EXMAN | IO331 | |
| EXMAN | SFO9329 | |
| EXMAN | SFO9830 | |
| EXMAN | YC512 | |
| FEDERAL MOTORS | FMS2072 | |
| GREYFRIARS | 9002S | |
| HITACHI | 4650205 | |
| HITACHI | L8970497080 | |
| HITACHI | 4432663 | |
| ISUZU | 97724183 | |
| ISUZU | 8942172700 | |
| ISUZU | 8943604260 | |
| ISUZU | 8970497080 | |
| ISUZU | 8970497081 | |
| ISUZU | ADZ92103E | |
| ISUZU | 894430983 | |
| ISUZU | 8944309830 | |
| ISUZU | 5873104890 | |
| ISUZU | 8944309831 | |
| ISUZU | 5876100090 | |
| KNECHT | OC265 | |
| MECANO CONTINENTAL | CHI014 | |
| SANY | A222100000569 | |
| SUBARU | 8944309830 | |
| TAKEUCHI | I8970497081 | |
| TCM | 2080101061 | |
| TCM | 2080102171 | |
| TCM | 2080101271 | |
| TEHO | 4180 | |
| TOYOTA | 885000000000 | |
| TOYOTA | 8851120 | |
| TOYOTA | 885112000000 | |
| UNION CITY BODY | C741 | |
| VIC | C512 | |
| VMC | LF502039 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DAEWOO DH55 | - | EXCAVATOR | - | ISUZU 4JB1 | - |
| HITACHI EX75US-7 | - | EXCAVATOR TRACKED | - | ISUZU 4JG1 | - |
| HITACHI UE50 | - | EXCAVATOR COMPACT | - | ISUZU 4JC1 | - |
| HITACHI ZX60 | - | EXCAVATOR | - | ISUZU 4JG1 | - |
| HITACHI ZX70 | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX70LX | - | EXCAVATOR COMPACT | ZAXIS SERIES | ISUZU 4JG1 | - |
| HITACHI ZX75UR | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX75US | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX80 | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX80LC | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX80LCK | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX80SBLC | - | EXCAVATOR TRACKED | ZAXIS SERIES | ISUZU 4JG1 | - |
| HITACHI ZX850SBLC | - | EXCAVATOR TRACKED | - | ISUZU 4JG1 | - |
| HITACHI ZX85US | - | EXCAVATOR TRACKED | - | ISUZU 4JG1 | - |
| HYUNDAI HDF20 III | - | FORKLIFT | HDF SERIES | ISUZU 4JG2 | - |
| HYUNDAI HDF25 III | - | FORKLIFT | HDF SERIES | ISUZU 4JG2 | - |
| HYUNDAI HDF30 III | - | FORKLIFT | HDF SERIES | ISUZU 4JG2 | - |
| IHI 55 J | - | EXCAVATOR COMPACT | - | ISUZU 4JA1 | - |
| ISUZU NKR55 | 1987-1995 | TRUCK | - | ISUZU 4JB1 2.8L | - |
| JOHN DEERE 80C | - | EXCAVATOR | - | ISUZU 4JG1 | - |
| LOVOL FR80H | - | EXCAVATOR | - | ISUZU 4BG1T | - |
| NEW HOLLAND E150 | - | EXCAVATOR TRACKED | E SERIES, BLADE RUNNER | MITSUBISHI DO4 FR | - |
| SANY SY55 | - | EXCAVATOR | - | ISUZU 4JG1 | - |
| SANY SY55 | - | EXCAVATOR | - | ISUZU 4JG1 | - |
| SANY SY75C9 | - | EXCAVATOR TRACKED | - | ISUZU 4JG1 | - |
| XGMA XG808 | - | EXCAVATOR COMPACT | - | ISUZU AA4JG1TPC | - |
| ZOOMLION ZE85 | - | EXCAVATOR TRACKED | - | CUMMINS B3.3 | - |
