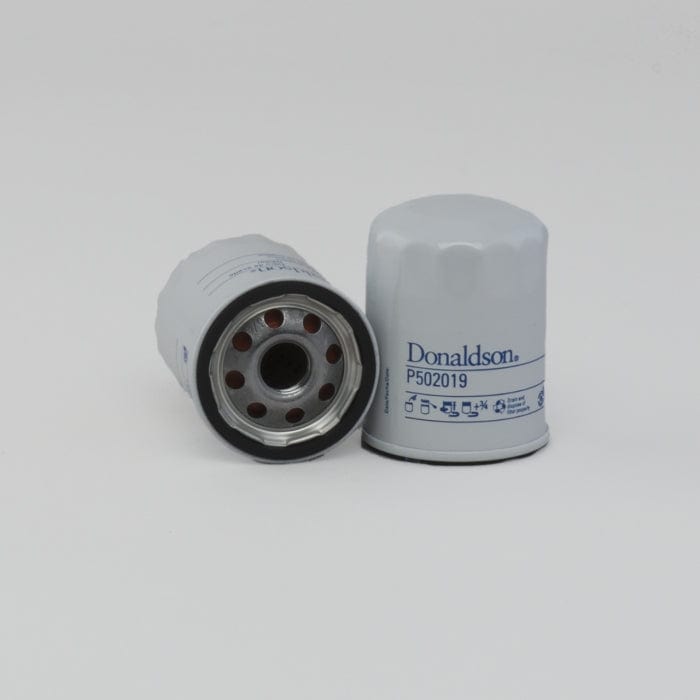

Lube Filter, Spin-On Full Flow - Donaldson P502019
Lube Filter, Spin-On Full Flow - Donaldson P502019
Regular price
£6.32
Regular price
Sale price
£6.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502019
Lube Filter, Spin-On Full FlowShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 65 mm (2.56 inch)
- Thread Size: 3/4-16
- Length: 90 mm (3.54 inch)
- Gasket OD: 62.7 mm (2.47 inch)
- Gasket ID: 55 mm (2.17 inch)
- Efficiency 50%: 20 micron
- Efficiency Beta 75: 40 micron
- Efficiency Test Std: JIS D 1611
- Anti-Drainback Valve: Yes
- Bypass Valve: Yes
- Bypass Valve Setting LR: 0.76 bar (11 psi)
- Bypass Valve Setting HR: 1.17 bar (17 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Full-Flow
- Style: Spin-On
- Primary Application: TOYOTA 9091503004
Packaged Dimensions
- Packaged Length: 0.28 FT
- Packaged Width: 0.28 FT
- Packaged Height: 0.33 FT
- Packaged Weight: 0.245 kg (0.54 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330109618
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1220 | |
| AC DELCO | 88905890 | |
| AC DELCO | PF1234 | |
| AC DELCO | PF2228 | |
| AC DELCO | PF2221 | |
| AMERICAN MOTORS CORPORATION | MO4386 | |
| AMERICAN MOTORS CORPORATION | DO722 | |
| AMERICAN MOTORS CORPORATION | NO235 | |
| AMERICAN MOTORS CORPORATION | OF2011 | |
| AMERICAN MOTORS CORPORATION | OC16200 | |
| AMERICAN MOTORS CORPORATION | L4386 | |
| AMERICAN MOTORS CORPORATION | OC18130 | |
| AMERICAN MOTORS CORPORATION | SFO4477 | |
| AMERICAN MOTORS CORPORATION | ACO46 | |
| AMERICAN MOTORS CORPORATION | SFO4478 | |
| AMERICAN MOTORS CORPORATION | SP40201 | |
| AMERICAN MOTORS CORPORATION | OC16110 | |
| AMERICAN MOTORS CORPORATION | T3153 | |
| AMERICAN MOTORS CORPORATION | T1639 | |
| AMSOIL | EAO10 | |
| ASAHI | DO722 | |
| ATLAS | F85 | |
| AUTO PRIDE | CF483AP | |
| BIG A | 92315 | |
| BIG A | 92396 | |
| BOSCH-REXROTH | 72167 | |
| BRAVO | B4477 | |
| CAM2 | C5230 | |
| CAM2 | C4477 | |
| CARCARE | OF4386 | |
| CASE/CASE IH | C216 | |
| CASITE | CF308 | |
| CASITE | CF483 | |
| CENEX | CO2841 | |
| CITGO | C5230 | |
| CITGO | C4477 | |
| CLEAN | PO4386 | |
| COOPERS | Z1047 | |
| COOPERS | Z1044 | |
| COOPERS | Z1042 | |
| CROSLAND | 2100 | |
| CROSLAND | 2117 | |
| DAIHATSU | 1560187202 | |
| DAIHATSU | 9091510002 | |
| DANIEL DOYEN | DOF5705 | |
| DANIEL DOYEN | DOF8105 | |
| DEUSCH | D369 | |
| ECHLIN | OF83 | |
| ECONOLUBE | L14477 | |
| ECONOLUBE | PH4477 | |
| EVERGARD | SL25230 | |
| EVERGARD | E4477 | |
| EVERGARD | L25230 | |
| EVERGARD | SL14477 | |
| EXMAN | ACO46 | |
| EXMAN | SFO4478 | |
| EXMAN | SFO4477 | |
| EXMAN | OC16110 | |
| EXMAN | DO722 | |
| EXMAN | T3153 | |
| EXMAN | MO4386 | |
| EXMAN | OC18130 | |
| EXMAN | OC16200 | |
| EXMAN | SP40201 | |
| EXMAN | T1639 | |
| EXMAN | OF2011 | |
| EXMAN | NO235 | |
| EXMAN | L4386 | |
| FACET | L2841 | |
| FEDERAL MOTORS | FMS2022 | |
| FEDERATED | LF483F | |
| FEDERATED | LF413F | |
| FIAAM | FT5209 | |
| FIAAM | FT5286 | |
| FIRESTONE | L25230 | |
| FIRESTONE | TF4477 | |
| FORD | 86546623 | |
| FORD | F8CZ6731AA | |
| FSA | FO1038 | |
| FSA | FO1061 | |
| FSA | 1520853J00 | |
| GOODYEAR | L4477 | |
| GRANT | PH2841 | |
| GREASE MONKEY | GM25230 | |
| GREASE MONKEY | GM4477 | |
| GREASE MONKEY | GM14477 | |
| GROUP 7 | V4477 | |
| GROUP 7 | V4477BP | |
| GUD | Z211 | |
| GUD | Z231 | |
| ISUZU | 5863007570 | |
| KENDALL | K37 | |
| KNECHT | OC2176 | |
| KNECHT | OC217 | |
| KOMATSU | Z149091503004 | |
| KRALINATOR | L315 | |
| KRALINATOR | L1396 | |
| LEE ENGINEERING | LF2841 | |
| LEE ENGINEERING | LF2841HP | |
| LEE MAXI | LF2841HP | |
| LUCAS | F6588 | |
| LUCAS | F6603 | |
| LUCAS | F6622 | |
| MAZDA | YF0914302 | |
| MINIT LUBE | PH4477 | |
| MITSUBISHI | 90915YZZF1 | |
| NEW HOLLAND | 86546623 | |
| NISSAN | 1520831000 | |
| NISSAN/UD TRUCKS | 1520853J0A | |
| NISSAN/UD TRUCKS | 1520853J10 | |
| NISSAN/UD TRUCKS | 1520853J00 | |
| NISSAN/UD TRUCKS | 1520870J0A | |
| NISSAN/UD TRUCKS | 15208BX00A | |
| NISSAN/UD TRUCKS | 1520853J01 | |
| NISSAN/UD TRUCKS | 1520870J01 | |
| NISSAN/UD TRUCKS | 1520870J00 | |
| NISSAN/UD TRUCKS | ADN12110E | |
| NORTHERN LIGHTS | 2408001 | |
| PERKINS | 140517030 | |
| PERKINS | 140506250 | |
| PERKINS | 140516250 | |
| PHILLIPS 66 | PO1315 | |
| POWER-FLO | SL14477 | |
| POWER-FLO | SL25230 | |
| PRO GAUGE | PGO4477 | |
| PRO-TEC | 169 | |
| PROMOTIVE | PH4477 | |
| PROMOTIVE | PH5230 | |
| PRONTO | PO5230 | |
| PRONTO | PO8316 | |
| QUAKER STATE | QS4386 | |
| SEARS | TS10 | |
| SERVICE CHAMP | OF5230 | |
| SERVICE CHAMP | OF4477 | |
| SERVICE CHAMP | PH2823 | |
| SHELL | S74 | |
| SHELL | S69 | |
| SHELL | SH42 | |
| SUNOCO | O34 | |
| SUZUKI | 1651061A31 | |
| SUZUKI | 1651061A21 | |
| SUZUKI | 1651061A20 | |
| SUZUKI | 16510610A01 | |
| SUZUKI | 1651061A01 | |
| SUZUKI | 1651006B00 | |
| SYSTEMS MATERIAL HANDLING | TY0892202002 | |
| TEHO | 4188 | |
| TEHO | 4177 | |
| TEXACO | TFC526B | |
| TEXACO | TFC526 | |
| TOYOTA | 90915YZZA4 | |
| TOYOTA | 9091510010 | |
| TOYOTA | 90915YZZC4 | |
| TOYOTA | 90915YZZF1 | |
| TOYOTA | 90915YZZJ2 | |
| TOYOTA | 1560016010 | |
| TOYOTA | 1560001020 | |
| TOYOTA | 90915YZZ52 | |
| TOYOTA | ADT3211ZE | |
| TOYOTA | 156017600871 | |
| TOYOTA | 892202002 | |
| TOYOTA | 892202001 | |
| TOYOTA | 0892202002 | |
| TOYOTA | 0892202001 | |
| TOYOTA | 9008091210 | |
| TOYOTA | 1150101660 | |
| TOYOTA | 9091503004 | |
| TOYOTA | 9091510004 | |
| TOYOTA | 9091510002 | |
| TOYOTA | 90915YZZA1 | |
| TOYOTA | 90915VZZA1 | |
| TOYOTA | 90915TA002 | |
| UNION 76 | PF2875 | |
| UNION CITY BODY | C123 | |
| UNION CITY BODY | C216 | |
| VIC | C113 | |
| VIC | C218 | |
| VMC | LF502019 | |
| VOLVO PENTA | 861473 | |
| VOLVO PENTA | VOE8614737 | |
| VOLVO PENTA | 8614737 | |
| WARNER & SWASEY | PH2005 | |
| WARNER & SWASEY | WPH2005 | |
| WARNER & SWASEY | PH2841 | |
| XSV | OP4477 | |
| YANMAR | 16500015360 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DAIHATSU S-YB20G | - | LIGHT TRUCK | - | TOYOTA 2Y-U | - |
| GOLDONI TRACTORS 20DT | - | TRACTOR | - | PERKINS 103.10 | - |
| KOMATSU FG10 | - | FORKLIFT | FG SERIES | NISSAN J15 | - |
| MAZDA E-TF51W | - | LIGHT TRUCK | - | NISSAN J20A | - |
| NEW HOLLAND 1220 | - | TRACTOR | - | - 1220 | - |
| NEW HOLLAND CM222 | - | LAWN EQUIPMENT | - | - CM222 | - |
| NEW HOLLAND CM224 | - | LAWN EQUIPMENT | - | - CM224 | - |
| NEW HOLLAND CM272 | - | LAWN EQUIPMENT | - | - CM272 | - |
| NEW HOLLAND CM274 | - | LAWN EQUIPMENT | - | - CM274 | - |
| NEW HOLLAND GT75 | - | LAWN EQUIPMENT | - | - GT75 | - |
| NEW HOLLAND L255 | - | SKID STEER LOADER | L SERIES | - L255 | - |
| NEW HOLLAND LS125 | - | SKID STEER LOADER | - | - LS125 | - |
| NEW HOLLAND MC22 | - | LAWN EQUIPMENT | - | - MC22 | - |
| NEW HOLLAND TC18 | - | TRACTOR | - | - TC18 | - |
| NEW HOLLAND TC18D | - | TRACTOR | - | IHI S753 | - |
| NEW HOLLAND TC21 | - | TRACTOR | - | - TC21 | - |
| NEW HOLLAND TC21D | - | TRACTOR | - | IHI S773 | - |
| NEW HOLLAND TC21DA | - | TRACTOR | - | SHIBAURA - | - |
| PERKINS RIGMASTER | - | GENERATOR SET | - | PERKINS 402C-05 | - |
| TOYOTA 426FGC25 | - | FORKLIFT | - | - 426FGC25 | - |
| TOYOTA 7FGCU20 | - | FORKLIFT | - | - 7FGCU20 | - |
| TOYOTA LANDCRUISER 300 SERIES FJA300 | 2021- | LIGHT TRUCK | - | TOYOTA F33A-FTV 3.3L V6 | - |
