• Donaldson Lube Filter, Spin-On Full Flow - Donaldson P502009
1 1

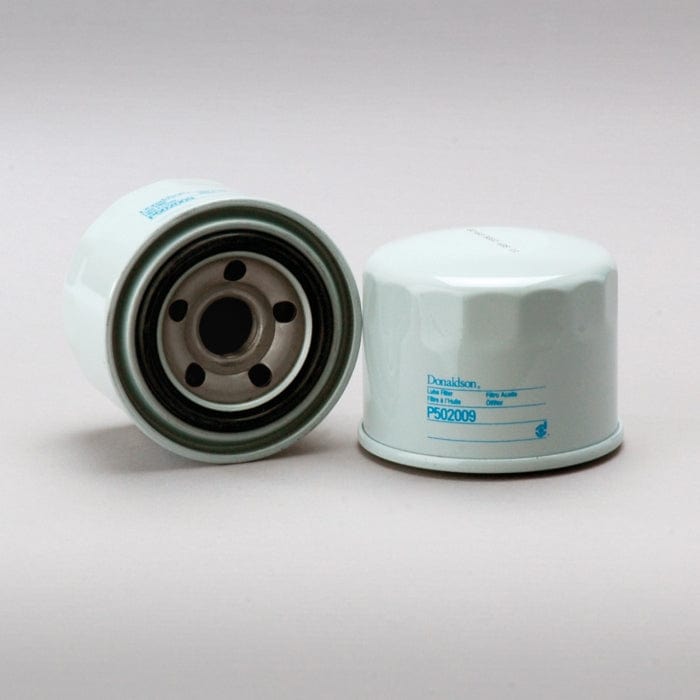

Lube Filter, Spin-On Full Flow - Donaldson P502009

Lube Filter, Spin-On Full Flow - Donaldson P502009

£10.24
£10.24
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502009

Lube Filter, Spin-On Full Flow
Outer Diameter 3.15 inch (80.01 mm)
Thread Size M20 x 1.5
Length 2.52 inch (64.01 mm)
Gasket OD 2.48 inch (62.99 mm)
Gasket ID 2.03 inch (51.56 mm)
Efficiency 50% 20 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 17 psi (1.2 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Primary Application MITSUBISHI MD136466
View full details

Specifications

Attributes

  • Outer Diameter: 80.01 mm (3.15 inch)
  • Thread Size: M20 x 1.5
  • Length: 64.01 mm (2.52 inch)
  • Gasket OD: 62.99 mm (2.48 inch)
  • Gasket ID: 51.56 mm (2.03 inch)
  • Efficiency 50%: 20 micron
  • Efficiency Test Std: JIS D 1611
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.8 bar (12 psi)
  • Bypass Valve Setting HR: 1.2 bar (17 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Primary Application: MITSUBISHI MD136466

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.079 m (3.15 inch)
  • Packaged Weight: 0.322 kg (0.71 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330109557

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH 0451103316
CASE/CASE IH C331
CUB CADET MA30A4000100
DAEWOO A218226
FEDERAL MOTORS FMS2120
HYUNDAI 2630035503
KNECHT OC230
MITSUBISHI MD136466
MITSUBISHI 30A4000101
MITSUBISHI 3414070100
MITSUBISHI 30A4000105
MITSUBISHI MD133737
NEW HOLLAND 73184193
ORENSTEIN & KOPPEL 2906684
SANY 60206774
SDMO 330560537
UNION CITY BODY C331
VMC LF502009

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
KATO HD50URG - CRANE - MITSUBISHI K4M -
