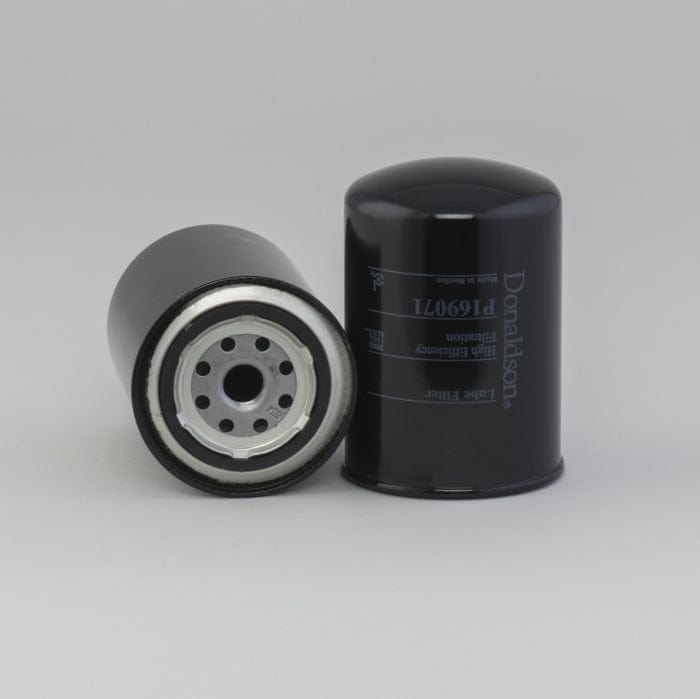

Donaldson P169071

Lube Filter, Spin-On Full Flow
Outer Diameter 3.67 inch (93.2 mm)
Thread Size 3/4-16 UN
Length 5.32 inch (135.1 mm)
Gasket OD 2.85 inch (72.4 mm)
Gasket ID 2.47 inch (62.7 mm)
Efficiency 99% 22 micron
Efficiency Beta 75 30 micron
Efficiency Test Std ISO 4572
Anti-Drainback Valve No
Bypass Valve Yes
Bypass Valve Setting HR 10 psi (0.69 bar)
Media Type Synthetic
Collapse Burst 80 psi (5.5 bar)
Type Full-Flow
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93.2 mm (3.67 inch)
  • Thread Size: 3/4-16 UN
  • Length: 135.1 mm (5.32 inch)
  • Gasket OD: 72.4 mm (2.85 inch)
  • Gasket ID: 62.7 mm (2.47 inch)
  • Efficiency 99%: 22 micron
  • Efficiency Beta 75: 30 micron
  • Efficiency Test Std: ISO 4572
  • Anti-Drainback Valve: No
  • Bypass Valve: Yes
  • Bypass Valve Setting HR: 0.69 bar (10 psi)
  • Media Type: Synthetic
  • Collapse Burst: 5.5 bar (80 psi)
  • Type: Full-Flow
  • Style: Spin-On

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.110 m (4.40 inch)
  • Packaged Height: 0.175 m (7.00 inch)
  • Packaged Weight: 0.613 kg (1.35 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330165447
