• Donaldson Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7900
1 1

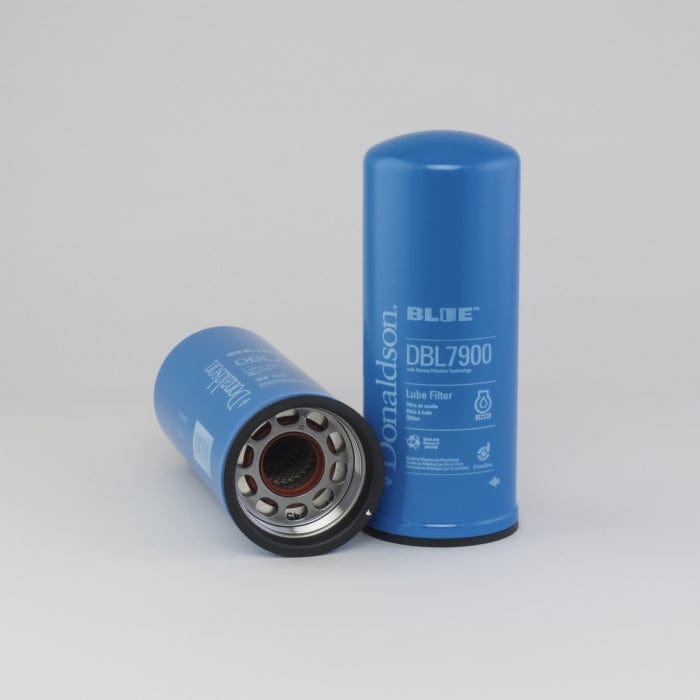

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7900

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7900

£73.02
£73.02
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBL7900

Lube Filter, Spin-On Full Flow Donaldson Blue
Efficiency 97.6% 15 micron
Outer Diameter 4.65 inch (118 mm)
Thread Size M95 x 2.5
Length 11.65 inch (296 mm)
Gasket OD 4.69 inch (119 mm)
Gasket ID 4.02 inch (102 mm)
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
View full details

Specifications

Attributes

  • Efficiency 97.6%: 15 micron
  • Outer Diameter: 118 mm (4.65 inch)
  • Thread Size: M95 x 2.5
  • Length: 296 mm (11.65 inch)
  • Gasket OD: 119 mm (4.69 inch)
  • Gasket ID: 102 mm (4.02 inch)
  • Efficiency Test Std: ISO 4548-12
  • Media Type: Synteq
  • Collapse Burst: 10.3 bar (149 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Brand: Donaldson BLUE®

Packaged Dimensions

  • Packaged Length: 0.39 FT
  • Packaged Width: 0.39 FT
  • Packaged Height: 0.98 FT
  • Packaged Weight: 1.539 kg (3.39 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330111840

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CUMMINS 4906633
CUMMINS 4367100
CUMMINS 5575298
JOHN DEERE RE574468
JOHN DEERE DZ121669 Extended Service, Higher Efficiency (2010 Engines On)
JOHN DEERE PMLF9070
JOHN DEERE RE574468
LIUGONG 40C0434
MACK 2191P559000
MANITOWOC 4136480
MORBARK 29213844
NEW HOLLAND L76612210
NEW HOLLAND NP441700A1
PREVOST CAR 19500499
SISU 1216400571
TEREX 15275439
TEREX 15501271
TORQUIP 76612210
VMC LF7900
VMC LF559000
VOLVO 85114044

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FREIGHTLINER COLUMBIA - TRUCK - CUMMINS ISM -
INTERNATIONAL LT - TRUCK LT SERIES CUMMINS X15 EURO V
KENWORTH T680 - TRUCK - CUMMINS ISX15 -
KENWORTH T880 - TRUCK - CUMMINS X15 -
WESTERN STAR TRUCK 4964FXT - TRUCK - CUMMINS X15 -
