• Donaldson Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7670
1 1

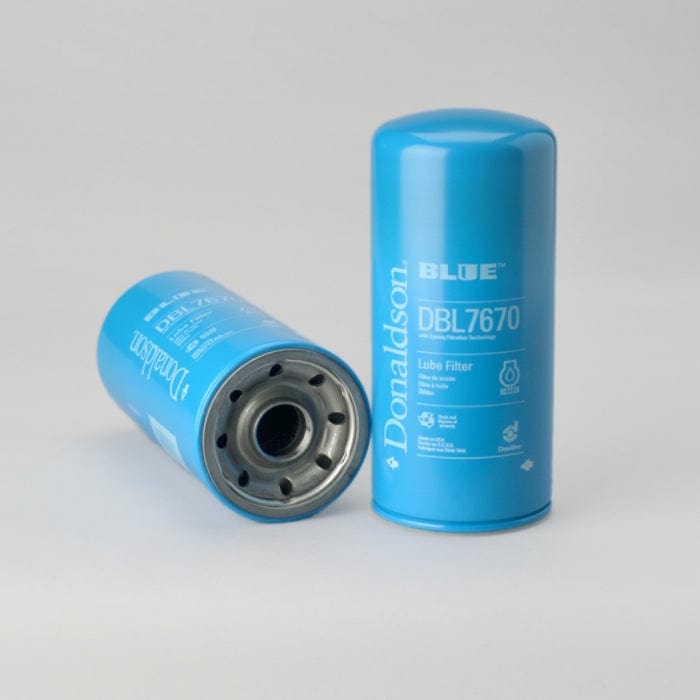

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7670

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7670

£40.06
£40.06
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson DBL7670

Lube Filter, Spin-On Full Flow Donaldson Blue
Outer Diameter 4.65 inch (118 mm)
Thread Size 1 1/2-12 UN
Length 10.24 inch (260 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.86 inch (98 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
View full details

Specifications

Attributes

  • Outer Diameter: 118 mm (4.65 inch)
  • Thread Size: 1 1/2-12 UN
  • Length: 260 mm (10.24 inch)
  • Gasket OD: 110 mm (4.33 inch)
  • Gasket ID: 98 mm (3.86 inch)
  • Efficiency 99%: 15 micron
  • Efficiency Test Std: ISO 4548-12
  • Media Type: Synteq
  • Collapse Burst: 10.3 bar (149 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Brand: Donaldson BLUE®

Packaged Dimensions

  • Packaged Length: 0.118 m (4.70 inch)
  • Packaged Width: 0.115 m (4.60 inch)
  • Packaged Height: 0.259 m (10.35 inch)
  • Packaged Weight: 1.419 kg (3.13 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330018538

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF2103L
AC DELCO PF911L
BOBCAT 900007
CUMMINS 5465813
DETROIT DIESEL 23518524
DETROIT DIESEL 23530408
DONGFENG 1125030H01A0
DOOSAN 65055105027A
DOOSAN 40050800095
HITACHI YA00003793
HITACHI 4639464
LANDA 36013363
LOESING 20738
VMC LF7670
WHITE 172010002
WHITE 9700351
XCMG 800141634

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HYSTER H1050 - FORKLIFT - CUMMINS LTA10 -
KOMATSU TD40 - LOADER WHEELED - CUMMINS KTA19 -
XCMG XE1250 - EXCAVATOR - CUMMINS QSK23-C760 -
