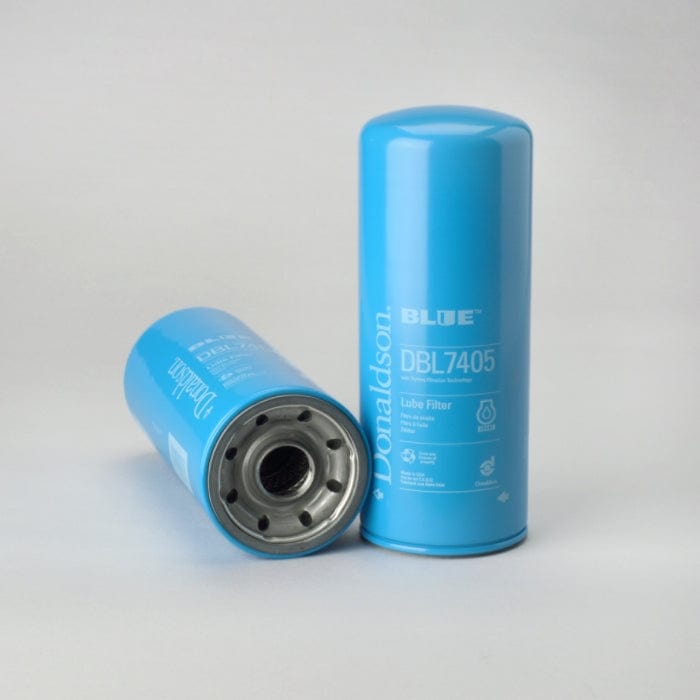

Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7405
Lube Filter, Spin-On Full Flow Donaldson Blue - Donaldson DBL7405
Regular price
£51.26
Regular price
Sale price
£51.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson DBL7405
Lube Filter, Spin-On Full Flow Donaldson Blue| Outer Diameter | 4.65 inch (118 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 11.73 inch (298 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | ISO 4548-12 |
| Media Type | Synteq |
| Collapse Burst | 149 psi (10.3 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Brand | Donaldson BLUE® |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Thread Size: 1 1/2-16 UN
- Length: 298 mm (11.73 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 15 micron
- Efficiency Test Std: ISO 4548-12
- Media Type: Synteq
- Collapse Burst: 10.3 bar (149 psi)
- Type: Full-Flow
- Style: Spin-On
- Brand: Donaldson BLUE®
Packaged Dimensions
- Packaged Length: 0.115 m (4.60 inch)
- Packaged Width: 0.113 m (4.50 inch)
- Packaged Height: 0.293 m (11.70 inch)
- Packaged Weight: 1.587 kg (3.50 lb)
- Packaged Volume: 0.004 m3 (0.14 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330018262
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 2444484 | |
| COMPAIR | 9826280400001 | |
| SULLAIR | 0953 | |
| SULLAIR | 953 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 5130 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 572R II | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR 578 | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR 583R | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR 587R | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406C DITA | - |
| CATERPILLAR 589 | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR AP1000D | - | PAVER | AP SERIES | CATERPILLAR C7.1 | - |
| CATERPILLAR AP1055D | - | PAVER | AP SERIES | CATERPILLAR C7.1 | - |
| CATERPILLAR BG2455D | - | PAVER | BG SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR BG260D | - | PAVER | BG SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR D10N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D11N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR D11R | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR D5N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D5N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6R | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6R II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | - |
| CATERPILLAR D6R II LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | - |
| CATERPILLAR D6R II XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | - |
| CATERPILLAR D6R II XW | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 | - |
| CATERPILLAR D6R III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D6R III LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D6R III XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D6R III XW | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D6R LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6R XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6R XR | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D6T LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D6T XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D6T XW | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D7E | - | DOZER TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D7E LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR D7R | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R II | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R XR | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D8L | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR D8N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D9L | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D9N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
