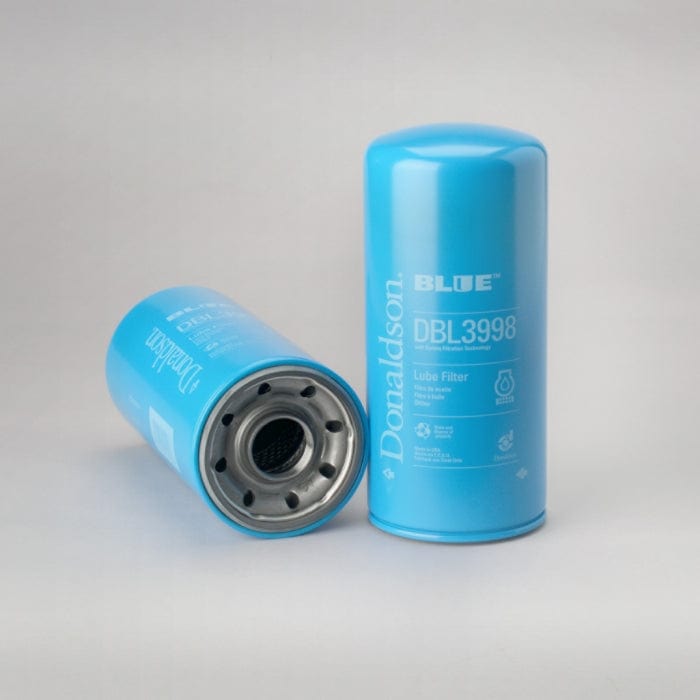

Donaldson DBL3998

Lube Filter, Spin-On Full Flow Donaldson Blue
Outer Diameter 4.65 inch (118 mm)
Thread Size 1 5/8-12 UN
Length 10.24 inch (260 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.86 inch (98 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
View full details

Specifications

Attributes

  • Outer Diameter: 118 mm (4.65 inch)
  • Thread Size: 1 5/8-12 UN
  • Length: 260 mm (10.24 inch)
  • Gasket OD: 110 mm (4.33 inch)
  • Gasket ID: 98 mm (3.86 inch)
  • Efficiency 99%: 15 micron
  • Efficiency Test Std: ISO 4548-12
  • Media Type: Synteq
  • Collapse Burst: 10.3 bar (149 psi)
  • Type: Full-Flow
  • Style: Spin-On
  • Brand: Donaldson BLUE®

Packaged Dimensions

  • Packaged Length: 0.115 m (4.60 inch)
  • Packaged Width: 0.113 m (4.50 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 1.403 kg (3.09 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330024423

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92971XD
LEYLAND-DAF (LDV) 10906228
LEYLAND-DAF (LDV) 10906288
LEYLAND-DAF (LDV) 709932
MACK 2191P552100
NEW FLYER INDUSTRIES LTD 945045
ORENSTEIN & KOPPEL 8024609
ORION BUS INDUSTRIES A0504947BL
PREVOST CAR 23530573
SANDVIK 69037162
TAMROCK 4521030
TAMROCK 04521030
TECALEMIT-TJ FP3349
TRUCK CARE 7505010
UNITED CENTRAL INDUSTRIAL SUPP 688704
UNIVERSAL COACH PARTS T081043
VMC LF3998
VMC LF552100
VMC XL552100
VOLVO 3915586
