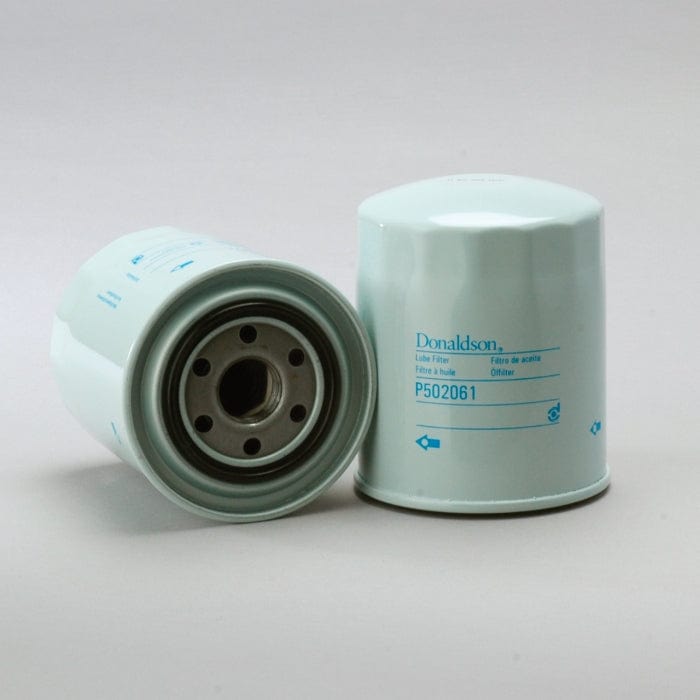

Lube Filter, Spin-On Combination - Donaldson P502061

Lube Filter, Spin-On Combination - Donaldson P502061

£12.72
£12.72
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502061

Lube Filter, Spin-On Combination
Outer Diameter 4.02 inch (102 mm)
Thread Size M26 x 1.5
Length 4.92 inch (125 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.17 inch (55 mm)
Efficiency 99% 37 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.72 bar)
Bypass Valve Setting HR 31 psi (2.14 bar)
Media Type Cellulose
Collapse Burst 100 psi (6.9 bar)
Type Combination
Style Spin-On
Primary Application MAZDA VSY114302
View full details

Specifications

Attributes

  • Outer Diameter: 102 mm (4.02 inch)
  • Thread Size: M26 x 1.5
  • Length: 125 mm (4.92 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 55 mm (2.17 inch)
  • Efficiency 99%: 37 micron
  • Efficiency Test Std: JIS D 1611
  • Anti-Drainback Valve: Yes
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.72 bar (25 psi)
  • Bypass Valve Setting HR: 2.14 bar (31 psi)
  • Media Type: Cellulose
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Combination
  • Style: Spin-On
  • Primary Application: MAZDA VSY114302

Packaged Dimensions

  • Packaged Length: 0.118 m (4.72 inch)
  • Packaged Width: 0.118 m (4.72 inch)
  • Packaged Height: 0.138 m (5.51 inch)
  • Packaged Weight: 0.897 kg (1.98 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330109861

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FEDERAL MOTORS FMS2148
MAZDA VSY114302
