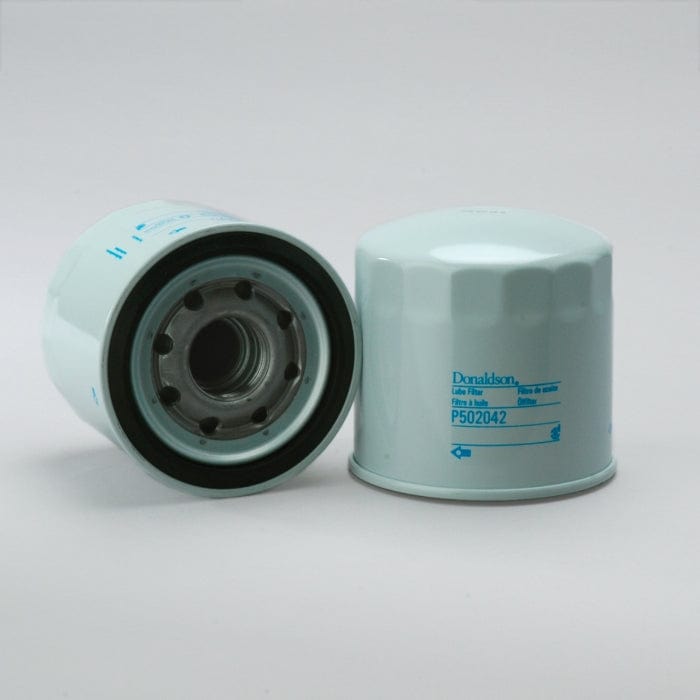

Lube Filter, Spin-On Combination - Donaldson P502042
Lube Filter, Spin-On Combination - Donaldson P502042
Regular price
£16.74
Regular price
Sale price
£16.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502042
Lube Filter, Spin-On Combination| Outer Diameter | 4.88 inch (124 mm) |
| Thread Size | 1 1/2-12 UN |
| Length | 4.72 inch (120 mm) |
| Gasket OD | 4.59 inch (116.5 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 50% | 16 micron |
| Efficiency Test Std | JIS D 1611 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 17 psi (1.17 bar) |
| Bypass Valve Setting HR | 19 psi (1.32 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Combination |
| Style | Spin-On |
| Primary Application | ISUZU 8970967770 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 124 mm (4.88 inch)
- Thread Size: 1 1/2-12 UN
- Length: 120 mm (4.72 inch)
- Gasket OD: 116.5 mm (4.59 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 50%: 16 micron
- Efficiency Test Std: JIS D 1611
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.17 bar (17 psi)
- Bypass Valve Setting HR: 1.32 bar (19 psi)
- Media Type: Cellulose
- Collapse Burst: 6.9 bar (100 psi)
- Type: Combination
- Style: Spin-On
- Primary Application: ISUZU 8970967770
Packaged Dimensions
- Packaged Length: 0.41 FT
- Packaged Width: 0.41 FT
- Packaged Height: 0.44 FT
- Packaged Weight: 0.962 kg (2.12 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Colombia
- NMFC Code: 069100-11
- HTS Code: 8421230090
- UPC Code: 742330109724
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | IO3319 | |
| AMERICAN MOTORS CORPORATION | IO3322 | |
| AMERICAN MOTORS CORPORATION | IO3319 | |
| BIG A | 91521 | |
| DAF TRP | 1534300 | |
| EXMAN | IO3322 | |
| EXXEL PTY LTD | OIL041 | |
| EXXEL PTY LTD | OIL096 | |
| EXXEL PTY LTD | 14640041 | |
| EXXEL PTY LTD | 1464096 | |
| EXXEL PTY LTD | 1464041 | |
| EXXEL PTY LTD | 14640096 | |
| FSA | C1562 | |
| FSA | FO1077 | |
| ISUZU | 8973713340 | |
| ISUZU | 8970967770 | |
| ISUZU | 8943381811 | |
| ISUZU | 5876101170 | |
| ISUZU | 2906548000 | |
| ISUZU | 97148270 | |
| ISUZU | 8983282070 | |
| ISUZU | 2945610000 | |
| ISUZU | 5876100310 | |
| ISUZU | 92956285 | |
| ISUZU | 8971482700 | |
| ISUZU | 8971482701 | |
| ISUZU | 5873104880 | |
| ISUZU | 8943381810 | |
| ISUZU | 5873104881 | |
| KRALINATOR | L7521 | |
| UNION CITY BODY | C711 | |
| UNION CITY BODY | C7111 | |
| VIC | C518 | |
| VMC | LF502046 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CHEVROLET NPR | - | TRUCK | - | ISUZU 4HK1T | - |
| CHEVROLET NPR | - | TRUCK | - | ISUZU 4HE1T | - |
| CHEVROLET NPR | - | TRUCK | - | ISUZU 4HG1 | - |
| CHEVROLET NPR | - | TRUCK | - | ISUZU 4HG1T | - |
| CHEVROLET NPR 816 | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU 4HE1T | - | ENGINE | - | - 4HE1T | - |
| ISUZU 4HF1T | - | ENGINE | - | - 4HF1T | - |
| ISUZU 4HG1 | - | ENGINE | - | - 4HG1 | - |
| ISUZU 4HJ1 | - | ENGINE | - | - 4HJ1 | - |
| ISUZU ELF NPR | - | TRUCK | - | ISUZU 4HK1TC | - |
| ISUZU ELF NPR | - | TRUCK | - | ISUZU 4HG1T | - |
| ISUZU ELF NPR KK-NPR71 | 1999 | TRUCK | - | ISUZU 4HG1 | - |
| ISUZU ELF NQR | - | TRUCK | - | ISUZU 4HG1T | - |
| ISUZU ELF NQR | - | TRUCK | - | ISUZU 4HK1TC | - |
| ISUZU ELF400 | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU ELF450 | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU ELF500 | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU ELF600 | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU FRD90 | 2012-on | TRUCK | - | ISUZU 4HK1-TCS 5.2L | SiTEC II |
| ISUZU FRD90 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCS 5.2L | SiTEC II |
| ISUZU FRR FORWARD | - | TRUCK | - | ISUZU 4HK1TCC | - |
| ISUZU FRR FORWARD | - | TRUCK | - | ISUZU 4HK1TCS | - |
| ISUZU FRR FORWARD | - | TRUCK | - | ISUZU 4HK1X | - |
| ISUZU FRR34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCC/TCN 7.8L | SiTEC II |
| ISUZU FRR90 | 2012-2015 | TRUCK | - | ISUZU 4HK1-TCS 5.2L | SiTEC III |
| ISUZU FRR90 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCS 5.2L | SiTEC II |
| ISUZU FSD34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCC/TCN 7.8L | SiTEC II |
| ISUZU FSR34 | 2008-2012 | TRUCK | - | ISUZU 6HK1-TCC 7.8L | SiTEC II |
| ISUZU FSS90 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCS 5.2L | SiTEC II |
| ISUZU FTR34 | 2008-2012 | TRUCK | - | ISUZU 6HK1-TCC 7.8L | SiTEC II |
| ISUZU FTS34 | 2008-2012 | TRUCK | - | ISUZU 6HK1-TCC 7.8L | SiTEC II |
| ISUZU FVD13 | 08/2000-on | TRUCK | - | ISUZU 6SA1-T | - |
| ISUZU FVD34 | 2008-2012 | TRUCK | - | ISUZU 6HK1-TCC 7.8L | SiTEC II |
| ISUZU FVL34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCS 7.8L | SiTEC II |
| ISUZU FVM34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCS 7.8L | SiTEC II |
| ISUZU FVR34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCS 7.8L | SiTEC II |
| ISUZU FVY34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCS 7.8L | SiTEC II |
| ISUZU FVZ34 | 2008-2011 | TRUCK | - | ISUZU 6HK1-TCS 7.8L | SiTEC II |
| ISUZU KCNKR66 | - | TRUCK | - | ISUZU 4HF1 | - |
| ISUZU KCNPR71 | - | TRUCK | - | - KCNPR71 | - |
| ISUZU KCNPR72 | - | TRUCK | - | ISUZU 4HJ1 | - |
| ISUZU NKR ELF | - | TRUCK | - | ISUZU 4HG1 | - |
| ISUZU NKR ELF | - | TRUCK | - | ISUZU 4HF1 | - |
| ISUZU NKR ELF 71 | - | TRUCK | - | ISUZU 4HG1T | - |
| ISUZU NKR66 | 1996-2003 | TRUCK | - | ISUZU 4HF1 4.2L | - |
| ISUZU NPR | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU NPR | - | TRUCK | - | ISUZU 4HG1T | - |
| ISUZU NPR ELF | - | TRUCK | - | ISUZU 4HJ1 | - |
| ISUZU NPR ELF | - | TRUCK | - | ISUZU 4HF1 | - |
| ISUZU NPR ELF | - | TRUCK | - | ISUZU 4HE1T | - |
| ISUZU NPR45 | 2016-On | TRUCK | - | - 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NPR45 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NPR55 | 2016-On | TRUCK | - | - 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NPR65 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NPR66 | 1992-2002 | TRUCK | - | ISUZU 4HF1 4.2L | - |
| ISUZU NPR70 | 2003-7/2005 | TRUCK | - | ISUZU 4HE1 4.8L | SiTEC I |
| ISUZU NPR71 (NPR250/300) | 8/2000-2002 | TRUCK | - | ISUZU 4HG1-T 4.6L | - |
| ISUZU NPR71 (NPR250/300/400) | 7/1996-2002 | TRUCK | - | ISUZU 4HG1 4.6L | - |
| ISUZU NPR71 (NPR400) | 8/2000-2002 | TRUCK | - | ISUZU 4HG1-TC 4.6L | - |
| ISUZU NPR75 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC II |
| ISUZU NPR75 | 9/2005-2007 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC I |
| ISUZU NPR75 | 2016-On | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NPR75 | 2012-2015 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NPR75 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NPS45 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NPS70 | 2003-7/2005 | TRUCK | - | ISUZU 4HE1 4.8L | SiTEC I |
| ISUZU NPS75 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC II |
| ISUZU NPS75 | 9/2005-2007 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC I |
| ISUZU NPS75 | 2012-2015 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NPS75 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NPS75 | 2016-On | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NQR | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU NQR70 | 2003-2005 | TRUCK | - | ISUZU 4HE1-TC 4.8L | - |
| ISUZU NQR70 | 4/1998-2002 | TRUCK | - | ISUZU 4HE1-T 4.8L | - |
| ISUZU NQR75 | 2012-2015 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC III |
| ISUZU NQR75 | 2008-2011 | TRUCK | - | ISUZU 4HK1-TCN 5.2L | SiTEC II |
| ISUZU NQR75 | 9/2005-2007 | TRUCK | - | ISUZU 4HK1-XS 5.2L | SiTEC I |
| ISUZU NQR80 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NQR87 | 2016-On | TRUCK | - | ISUZU 4HK1-TCC 5.2L | SiTEC III |
| ISUZU NRR | - | TRUCK | - | ISUZU 4HK1T | - |
| ISUZU UNPR66 | - | TRUCK | - | ISUZU 4HF1 | - |
| ISUZU UNPR70 | - | TRUCK | - | ISUZU 4HF1T | - |
| ISUZU UNPR70 | - | TRUCK | - | ISUZU 4HF1 | - |
| ISUZU UNPS66 | - | TRUCK | - | - UNPS66 | - |
