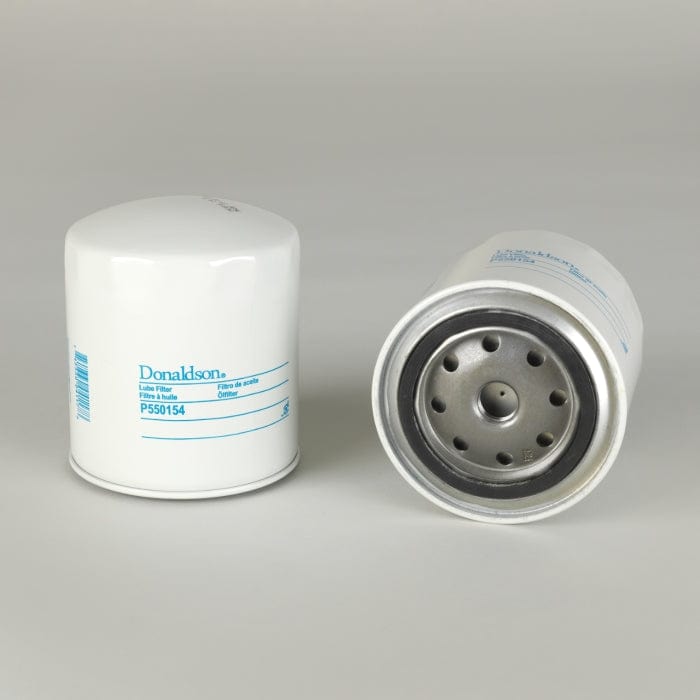

Lube Filter, Spin-On Bypass - Donaldson P550154

Lube Filter, Spin-On Bypass - Donaldson P550154

£10.34
£10.34
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550154

Lube Filter, Spin-On Bypass
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Thread Size: 5/8-18 UN
  • Length: 109 mm (4.29 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 45 micron
  • Efficiency Test Std: SAE J806
  • Media Type: Cellulose
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Bypass
  • Style: Spin-On
  • Primary Application: CASE/CASE IH 538836R1

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.363 kg (0.80 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330041178

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF1028
AC DELCO P1028
AMERICAN PARTS 92051
BIG A 92051
CASE/CASE IH RV52
CASE/CASE IH 538836R1
CATERPILLAR 3I1598
CLARK 6599587
DIAMANT BOART INC 541204571
FORD 9576P550154
GALION D117364
GEHL RV52
GROVE RV52
HINO 156071860A
INTERNATIONAL 538836R1
ISUZU 94054123
JLG 7014505
JLG 7021872
JOHN DEERE 538836R1
KOMATSU 538836R1
KRALINATOR L7704
NEW HOLLAND 509928
UNITED CENTRAL INDUSTRIAL SUPP 688316
VERMEER 61367001
VERMEER 28023001
VMC LF550154
WISCONSIN RV52
WISCONSIN RV152

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 100 - COMPACTOR - CASE/CASE IH C123 -
CASE/CASE IH 105 - COMBINE - CASE/CASE IH C153 -
CASE/CASE IH 130 - TRACTOR - SISU 620.88 -
CASE/CASE IH 161 - WINDROWER - CASE/CASE IH C123 -
CASE/CASE IH 163 - WINDROWER - CASE/CASE IH C123 -
CASE/CASE IH 201 - WINDROWER - CASE/CASE IH C135 -
CASE/CASE IH 203 - COMBINE - CASE/CASE IH C153 -
CASE/CASE IH 230 - TRACTOR - CASE/CASE IH C123 -
CASE/CASE IH 2400B - TRACTOR - - 2400B -
CASE/CASE IH 25+4 - TRENCHER - - 25+4 -
CASE/CASE IH 25+4XP - TRENCHER - - 25+4XP -
CASE/CASE IH 375 - WINDROWER - CASE/CASE IH C153 -
CASE/CASE IH 404 - TRACTOR - - 404 -
CASE/CASE IH 424 - TRACTOR - CASE/CASE IH C146 -
CASE/CASE IH 444 - LAWN EQUIPMENT - CASE/CASE IH C146 -
CASE/CASE IH 444 - LAWN EQUIPMENT - CASE/CASE IH C153 -
CASE/CASE IH 4500B - FORKLIFT 4000 SERIES INTERNATIONAL C153 -
CASE/CASE IH 660 - SPRAYER HIGH CLEARANCE CASE/CASE IH C146 -
CASE/CASE IH 770 - SPRAYER HIGH CLEARANCE CASE/CASE IH C146 -
CASE/CASE IH 780 - SPRAYER HIGH CLEARANCE CASE/CASE IH C146 -
CASE/CASE IH AV SERIES - TRACTOR - CASE/CASE IH C123 -
CASE/CASE IH BN - TRACTOR - CASE/CASE IH C113 -
CASE/CASE IH FARMALL A - TRACTOR - CASE/CASE IH C113 -
CASE/CASE IH FARMALL B - TRACTOR - CASE/CASE IH C113 -
CASE/CASE IH TF76 - COMBINE - CASE/CASE IH C123 -
CASE/CASE IH TF76 - COMBINE - CASE/CASE IH C113 -
CHEVROLET W4 - TRUCK - ISUZU 4BD2TC -
GEHL 1639 - PAVER - - 1639 -
GROVE IZ48B - CRANE MOBILE - - IZ48B -
GROVE MZ66B - CRANE MOBILE - - MZ66B -
ISUZU 6SA1T - ENGINE - - 6SA1T -
KOMATSU 2412B - LOADER - - 2412B -
KOMATSU H25B - LOADER - - H25B -
VERMEER 630 - CHIPPER - - 630 -
VERMEER 630B - CHIPPER - - 630B -
WISCONSIN VE4 - ENGINE - - VE4 -
WISCONSIN VE4D - ENGINE - - VE4D -
WISCONSIN VF4 - ENGINE - - VF4 -
WISCONSIN VF4D - ENGINE - - VF4D -
WISCONSIN VF4DG - ENGINE LPG - VF4DG -
WISCONSIN VG4D - ENGINE - - VG4D -
WISCONSIN VG4DG - ENGINE LPG - VG4DG -
WISCONSIN VH4 - ENGINE - - VH4 -
WISCONSIN VH4D - ENGINE - - VH4D -
WISCONSIN VH4DG - ENGINE LPG - VH4DG -
WISCONSIN W2-1235 - ENGINE - - W2-1235 -
