• Donaldson Lube Filter, Cartridge - Donaldson P554136
1 1

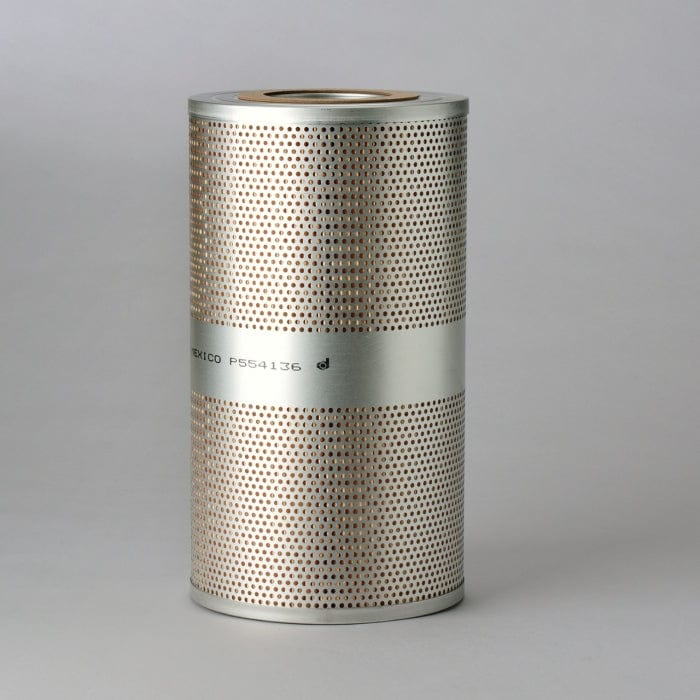

Lube Filter, Cartridge - Donaldson P554136

Lube Filter, Cartridge - Donaldson P554136

£48.60
£48.60
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P554136

Lube Filter, Cartridge
Outer Diameter 7.40 inch (188 mm)
Inner Diameter 3.42 inch (86.99 mm)
Length 13.39 inch (340 mm)
Gasket OD 4.80 inch (121.9 mm)
Gasket ID 3.43 inch (87 mm)
Efficiency 50% 20 micron
Media Type Cellulose
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
Primary Application CATERPILLAR 1W4136
View full details

Specifications

Attributes

  • Outer Diameter: 188 mm (7.40 inch)
  • Inner Diameter: 86.99 mm (3.42 inch)
  • Length: 340 mm (13.39 inch)
  • Gasket OD: 121.9 mm (4.80 inch)
  • Gasket ID: 87 mm (3.43 inch)
  • Efficiency 50%: 20 micron
  • Media Type: Cellulose
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Primary Application: CATERPILLAR 1W4136

Packaged Dimensions

  • Packaged Length: 0.203 m (8.10 inch)
  • Packaged Width: 0.195 m (7.80 inch)
  • Packaged Height: 0.355 m (14.20 inch)
  • Packaged Weight: 2.038 kg (4.49 lb)
  • Packaged Volume: 0.015 m3 (0.52 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330044636

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92291
CATERPILLAR 1791502
CATERPILLAR 1R0731
CATERPILLAR 1W4136
CATERPILLAR 4854705
FSI PP7314
TIM 1W4136
VMC LF554136
WALGAHN-MOTORENTECHN 811863
WALGAHN-MOTORENTECHN 00811863

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3606 - ENGINE - - 3606 -
CATERPILLAR 3608 - ENGINE - - 3608 -
CATERPILLAR 3612 - ENGINE - - 3612 -
CATERPILLAR 3616 - ENGINE - - 3616 -
CATERPILLAR 3618 - ENGINE - - 3618 -
