LED Blade Fuse Wall Rack with Fuses - (Connect 37130)

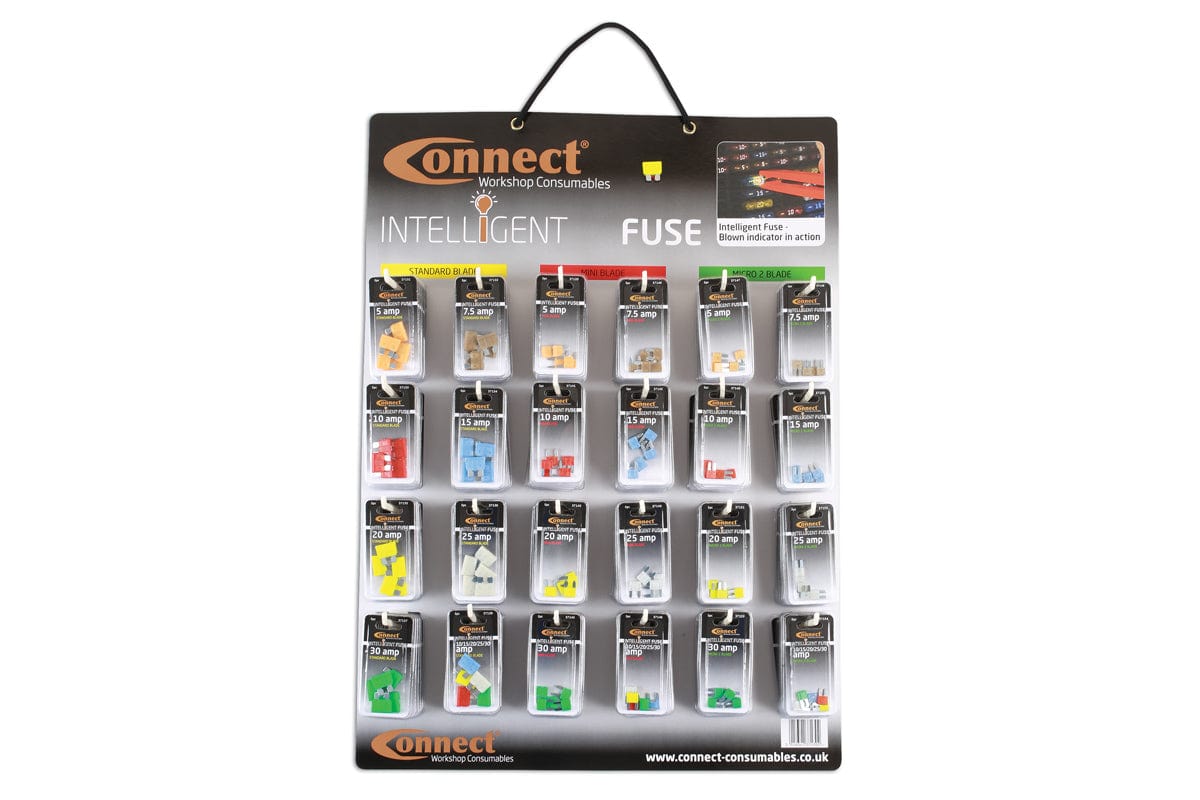

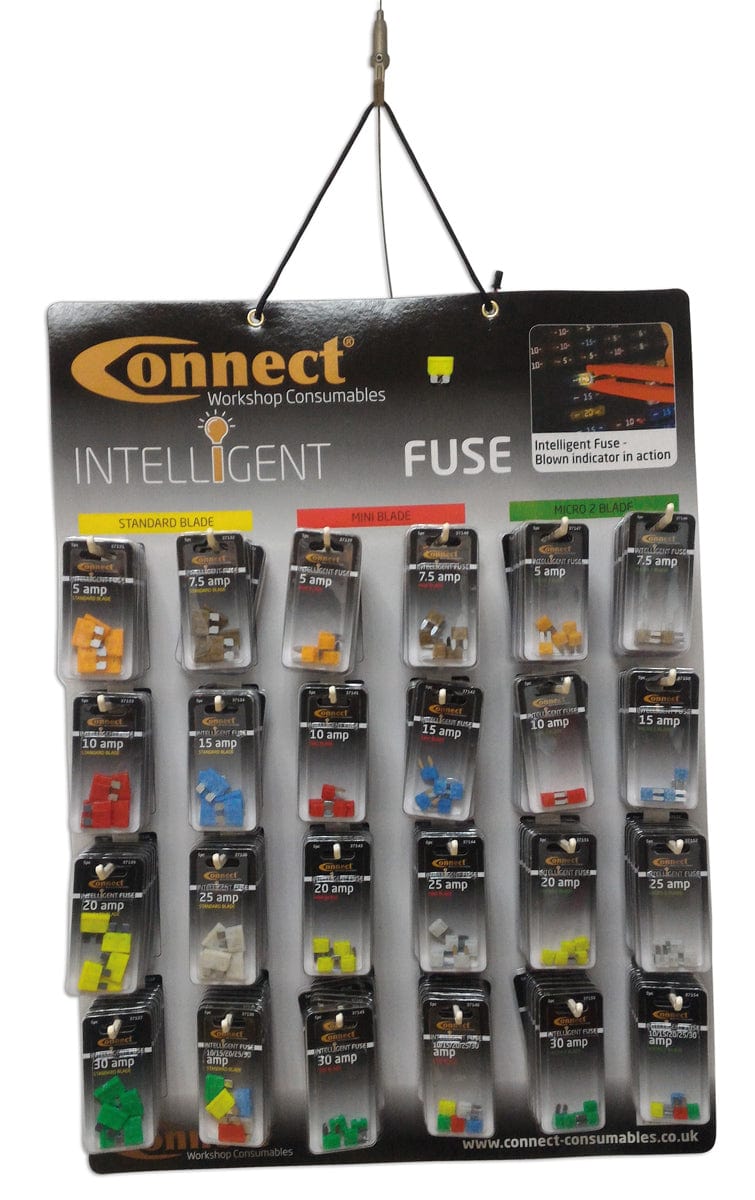

A wall hanging retail sales display board complete with 24 hooks and 144 packs of standard, mini and micro 2 blade LED fuses from 5 amps to 30 amps. The patented construction design of intelligent fuses are manufactured and tested to the strict OEM requirements and SAE standards for automotive use. With the built-in LED indicator, a blown fuse can be quickly and easily identified and replaced. Intelligent fuses can replace traditional car fuses without the need of any modification and will provide the same performance.

• Patented single bi-directional LED intelligent blade fuses in standard, mini & micro 2 sizes (6 packs of each; 5 fuses per pack): 5, 7.5, 10, 15, 20, 25, 30 amps.

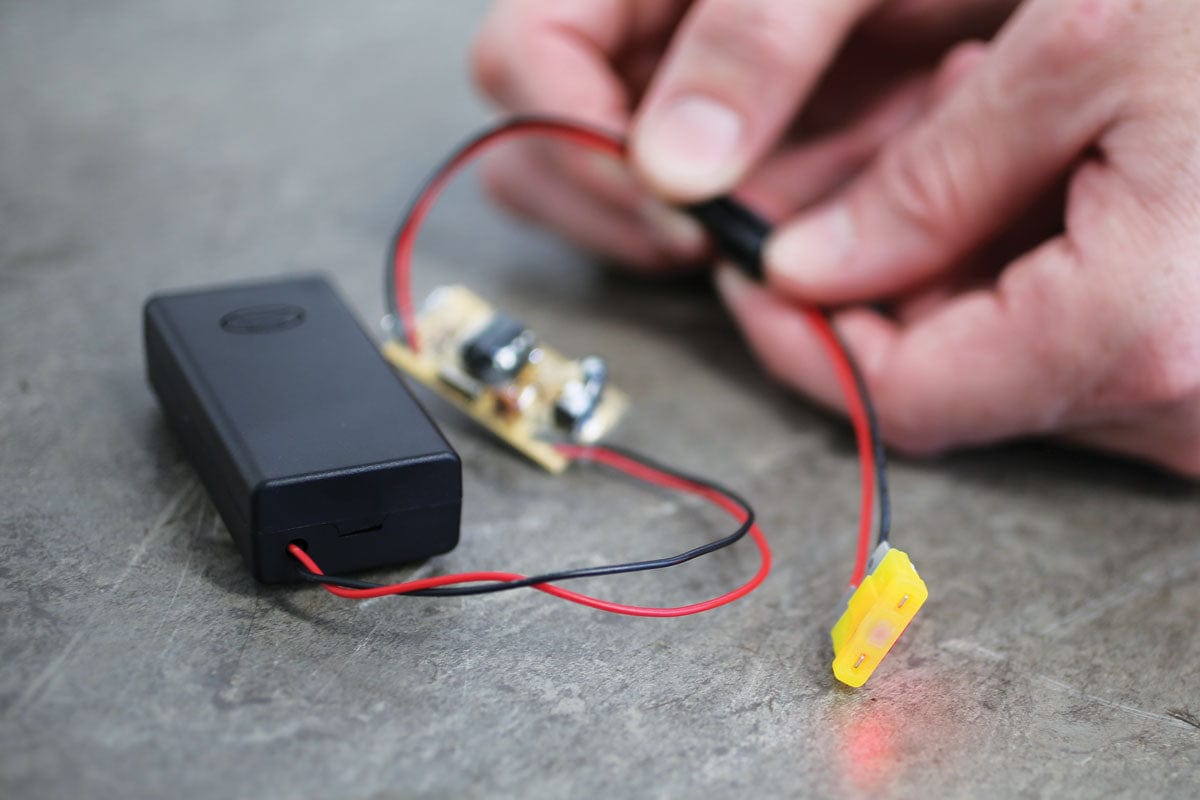

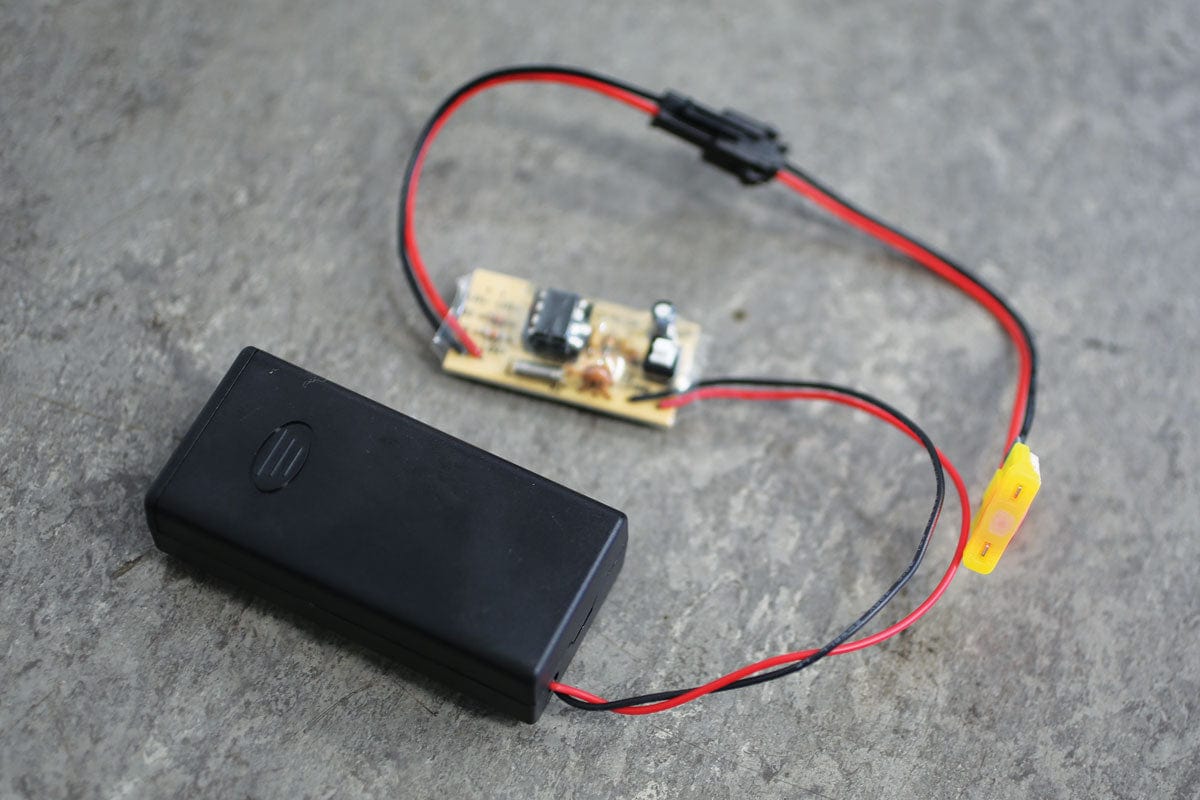

• Complete with PCB & battery case connected to blade fuse to demonstrate the LED functionality.
• Fuse housing material: PA66 thermoplastic; fuse: zinc alloy. Voltage rating: 32V DC max. Interrupting rating: 1000A @ 32V DC.
• Fuses conforms to SAE J1284 & ISO 8820-3. RoHS & REACH compliant.
• Full range of top up packs available, See Part Nos. 37131 - 37138 (LED standard blade fuses); 37139 - 37146 (LED mini blade fuses); 37147 - 37154 (LED micro 2 blade fuses).
