• Donaldson Inlet Hood, Louvered Air Ram - Donaldson H001654
1 1

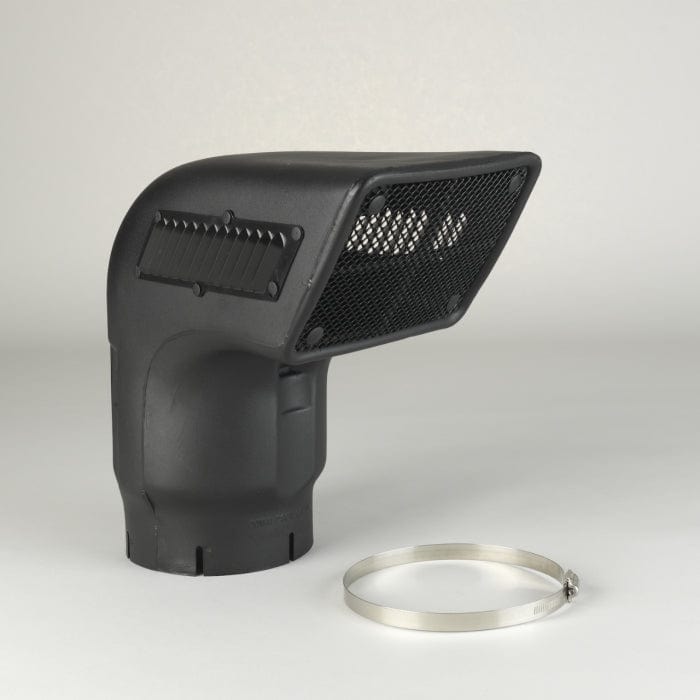

Inlet Hood, Louvered Air Ram - Donaldson H001654

Inlet Hood, Louvered Air Ram - Donaldson H001654

£151.87
£151.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H001654

Inlet Hood, Louvered Air Ram
Width 9.84 inch (250 mm)
Height 15.53 inch (394.46 mm)
Depth 15.63 inch (397 mm)
Inlet Diameter 7.05 inch (179 mm)
Rated Flow LR 699 cfm (19.8 m³/min)
Rated Flow HR 999 cfm (28.3 m³/min)
Brand Air Ram™
View full details

Specifications

Attributes

  • Width: 250 mm (9.84 inch)
  • Height: 394.46 mm (15.53 inch)
  • Depth: 397 mm (15.63 inch)
  • Inlet Diameter: 179 mm (7.05 inch)
  • Rated Flow LR: 19.8 m³/min (699 cfm)
  • Rated Flow HR: 28.3 m³/min (999 cfm)
  • Brand: Air Ram™

Packaged Dimensions

  • Packaged Length: 0.403 m (16.10 inch)
  • Packaged Width: 0.283 m (11.30 inch)
  • Packaged Height: 0.388 m (15.50 inch)
  • Packaged Weight: 2.095 kg (4.62 lb)
  • Packaged Volume: 0.046 m3 (1.63 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 156600-02
  • HTS Code: 8421999099
  • UPC Code: 742330003275

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTRA 500436366
AWD 91084485
CUB CADET 466840C91
DART GSH001654
EUCLID 4881172
FODEN 3200244000
FORD 9575GSH001654
FORD E0HZ9B933F
FORD EOHT9B933FA
FORD 9576H001654
FORD E0HT9B933FA
FORD EOHZ9B933F
FREIGHTLINER DNH001654
HEAVY DUTY MFG 397
INTERNATIONAL 0466840C91
INTERNATIONAL 466840C91
KENWORTH GSH001654
LEYLAND-DAF (LDV) 3200244000
MACK 49MD51P2
MACK 49MD53M3
MACK 219149MD51P2
MAN 56082015519
MAN 82082016007
MERCEDES-BENZ DNGSH001654
MI-JACK F25621600001
NISSAN/UD TRUCKS DONAC00905
SCANIA 1446476
TOYOTA 599320100
TOYOTA 0599320100
TOYOTA H0599320100
TOYOTA KA0647A
VME 4881172
VOLVO G15554321
VOLVO 4881172
VOLVO 226010021
VOLVO 226010011
WESTERN STAR TRUCK 226010011
