• Donaldson In-Line, Vertical Separator - Donaldson H001220
1 1

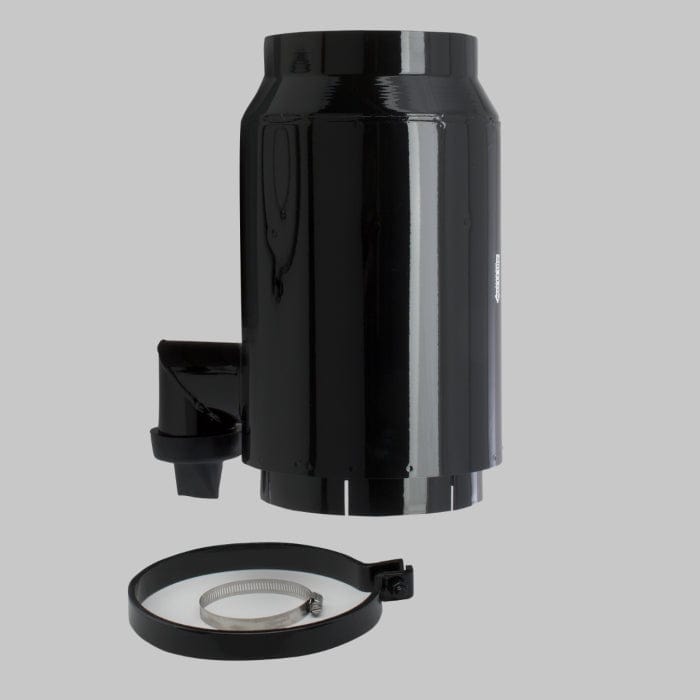

In-Line, Vertical Separator - Donaldson H001220

In-Line, Vertical Separator - Donaldson H001220

£471.99
£471.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H001220

In-Line, Vertical Separator
Length 17.00 inch (431.8 mm)
Inlet Diameter 8.00 inch (203.2 mm)
Outlet Diameter 8.06 inch (204.72 mm)
Body Diameter Maximum 9.59 inch (243.59 mm)
Rated Flow LR 901 cfm (25.5 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Style Vertical
View full details

Specifications

Attributes

  • Length: 431.8 mm (17.00 inch)
  • Inlet Diameter: 203.2 mm (8.00 inch)
  • Outlet Diameter: 204.72 mm (8.06 inch)
  • Body Diameter Maximum: 243.59 mm (9.59 inch)
  • Rated Flow LR: 25.5 m³/min (901 cfm)
  • Rated Flow HR: 42.5 m³/min (1501 cfm)
  • Style: Vertical

Packaged Dimensions

  • Packaged Length: 0.295 m (11.80 inch)
  • Packaged Width: 0.298 m (11.90 inch)
  • Packaged Height: 0.518 m (20.70 inch)
  • Packaged Weight: 6.710 kg (14.78 lb)
  • Packaged Volume: 0.047 m3 (1.68 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421197000
  • UPC Code: 742330087039

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CRANE CARRIER 102B9001
FREIGHTLINER 0324052000
FREIGHTLINER DNH001220
FREIGHTLINER MBT0324052000
KENWORTH PVH001220
LETOURNEAU 4228623
MERCEDES-BENZ 0324052000
MERCEDES-BENZ 324052000
PETERBILT PVH001220
PREVOST CAR 530207
