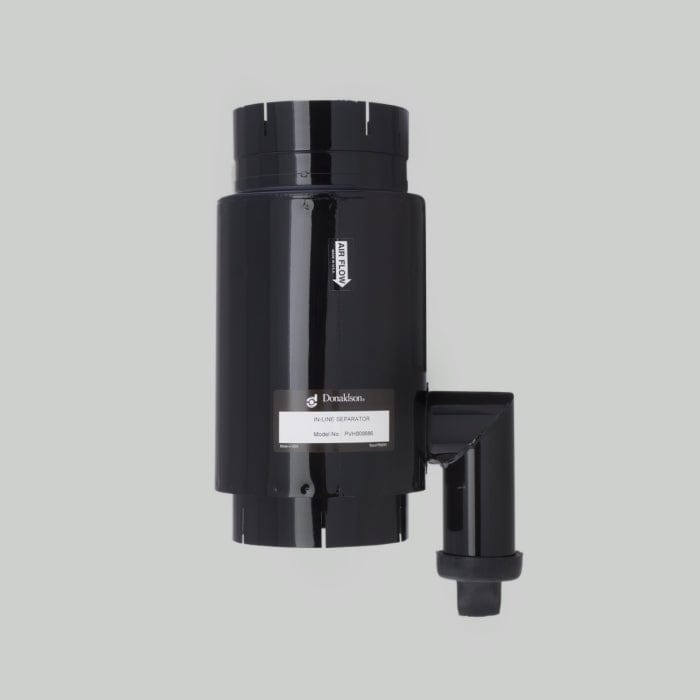

In-Line, Vertical Separator - Donaldson H000886

In-Line, Vertical Separator - Donaldson H000886

£356.13
£356.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H000886

In-Line, Vertical Separator
View full details

Specifications

Attributes

  • Length: 438.15 mm (17.25 inch)
  • Inlet Diameter: 179.32 mm (7.06 inch)
  • Outlet Diameter: 179.32 mm (7.06 inch)
  • Body Diameter Maximum: 217.42 mm (8.56 inch)
  • Rated Flow LR: 21.2 m³/min (749 cfm)
  • Rated Flow HR: 31.1 m³/min (1098 cfm)
  • Style: Vertical

Packaged Dimensions

  • Packaged Length: 0.320 m (12.80 inch)
  • Packaged Width: 0.228 m (9.10 inch)
  • Packaged Height: 0.508 m (20.30 inch)
  • Packaged Weight: 5.770 kg (12.71 lb)
  • Packaged Volume: 0.038 m3 (1.37 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421310090
  • UPC Code: 742330002865

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BLUEBIRD 1109610
CATERPILLAR DNPVH000886
CRANE CARRIER 102A0225
CRANE CARRIER 102B8
CRANE CARRIER 102A225
DAF 1635778
DART PVH000886
FODEN 3201212000
FREIGHTLINER DNPVH000886
FREIGHTLINER DNH000886
KENWORTH PVH000886
LEYLAND-DAF (LDV) 3201212000
LEYLAND-DAF (LDV) 6KDK1573A
LEYLAND-DAF (LDV) KDK1573
MACK 2191MD39301
MACK 46MD39301
MERCEDES-BENZ DNPVH000886
MERCEDES-BENZ DNH000886
MULTI PART KDK1573
NEW FLYER INDUSTRIES LTD 5924856
NEW FLYER INDUSTRIES LTD 128169
RENAULT VI 5000791072D
RENAULT VI 5000791072
ROVER KDK1573
ROVER 6KDK1573A
TEREX 15312846
UNIPART KDK1573
UNIPART 6KDK1573A
UPTIME PARTS 220170001
VOLVO 220170001
