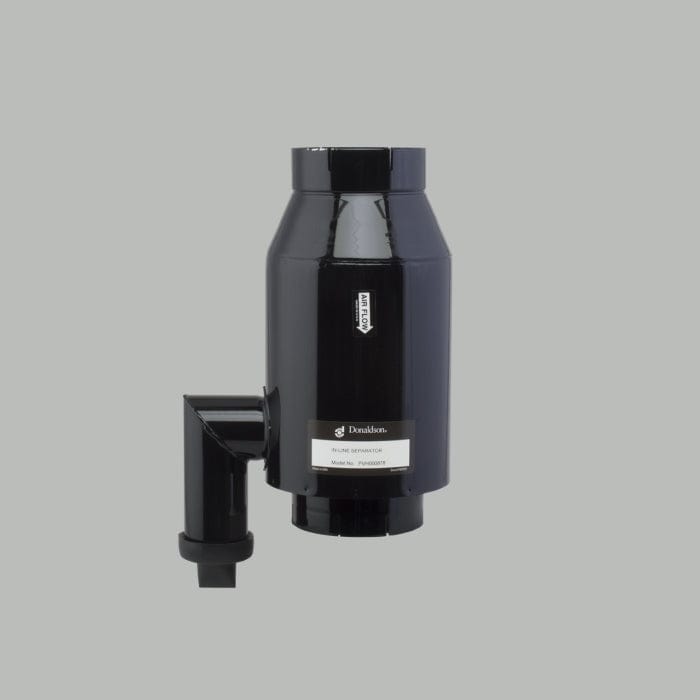

In-Line, Vertical Separator - Donaldson H000878

In-Line, Vertical Separator - Donaldson H000878

£333.81
£333.81
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H000878

In-Line, Vertical Separator
Length 17.24 inch (438 mm)
Inlet Diameter 6.03 inch (153.2 mm)
Outlet Diameter 6.03 inch (153.2 mm)
Body Diameter Maximum 8.56 inch (217.4 mm)
Rated Flow LR 501 cfm (14.2 m³/min)
Rated Flow HR 1098 cfm (31.1 m³/min)
Style Vertical
View full details

Specifications

Attributes

  • Length: 438 mm (17.24 inch)
  • Inlet Diameter: 153.2 mm (6.03 inch)
  • Outlet Diameter: 153.2 mm (6.03 inch)
  • Body Diameter Maximum: 217.4 mm (8.56 inch)
  • Rated Flow LR: 14.2 m³/min (501 cfm)
  • Rated Flow HR: 31.1 m³/min (1098 cfm)
  • Style: Vertical

Packaged Dimensions

  • Packaged Length: 0.320 m (12.80 inch)
  • Packaged Width: 0.225 m (9.00 inch)
  • Packaged Height: 0.508 m (20.30 inch)
  • Packaged Weight: 5.539 kg (12.20 lb)
  • Packaged Volume: 0.038 m3 (1.35 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421197000
  • UPC Code: 742330002858

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AWD 90370001
BLUEBIRD 9006126
BUS INDUSTRIES 0107425024
CRANE CARRIER 102A0166
CRANE CARRIER 120A0166
CRANE CARRIER 102A166
CUB CADET 536964C91
DART PVH000878
FREIGHTLINER 220173405
FREIGHTLINER DNH000878
FREIGHTLINER DN220173405
GRADALL 83681508
KOEHRING 124398
MACK 25069704
MACK 46MD32
MACK 46MD32P2
MACK 21016290
MACK 2191H000878
MACK 219146MD32
MACK 219146MD32P2
MACK 25017423
NEW FLYER INDUSTRIES LTD 5952367
OTTAWA TRUCK 90015482
SEDDON ATKINSON 65855S1
TRANSPORTATION MANUFACTURING 9TA02026
VOLVO 220170003
WESTERN STAR TRUCK 220173405
