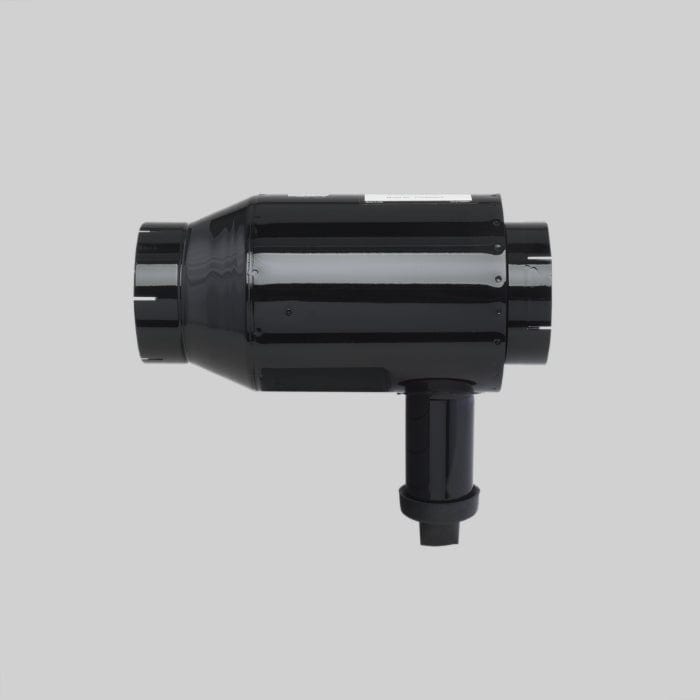

In-Line, Horizontal Separator - Donaldson H000875

In-Line, Horizontal Separator - Donaldson H000875

£410.51
£410.51
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson H000875

In-Line, Horizontal Separator
Length 17.25 inch (438.15 mm)
Inlet Diameter 6.03 inch (153.16 mm)
Outlet Diameter 6.03 inch (153.16 mm)
Body Diameter Maximum 8.56 inch (217.42 mm)
Rated Flow LR 501 cfm (14.2 m³/min)
Rated Flow HR 999 cfm (28.3 m³/min)
Style Horizontal
View full details

Specifications

Attributes

  • Length: 438.15 mm (17.25 inch)
  • Inlet Diameter: 153.16 mm (6.03 inch)
  • Outlet Diameter: 153.16 mm (6.03 inch)
  • Body Diameter Maximum: 217.42 mm (8.56 inch)
  • Rated Flow LR: 14.2 m³/min (501 cfm)
  • Rated Flow HR: 28.3 m³/min (999 cfm)
  • Style: Horizontal

Packaged Dimensions

  • Packaged Length: 0.403 m (16.10 inch)
  • Packaged Width: 0.253 m (10.10 inch)
  • Packaged Height: 0.448 m (17.90 inch)
  • Packaged Weight: 5.403 kg (11.90 lb)
  • Packaged Volume: 0.047 m3 (1.68 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421197000
  • UPC Code: 742330002841

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AG CHEM EQUIPMENT 60372
CASE/CASE IH T1950532
CRANE CARRIER 102B10
DART PVH000875
GRADALL 83683440
INTERNATIONAL 1518461C91
LEYLAND-DAF (LDV) BCU4309
OSHKOSH 3232410
OTTAWA TRUCK 90015277
OTTAWA TRUCK 90015227
ROVER BCU4309
TEREX T1950532
THOMAS BUILT BUSES 61100190
UNIPART BCU4309
WALGAHN-MOTORENTECHN 810195
WALGAHN-MOTORENTECHN 00810195
