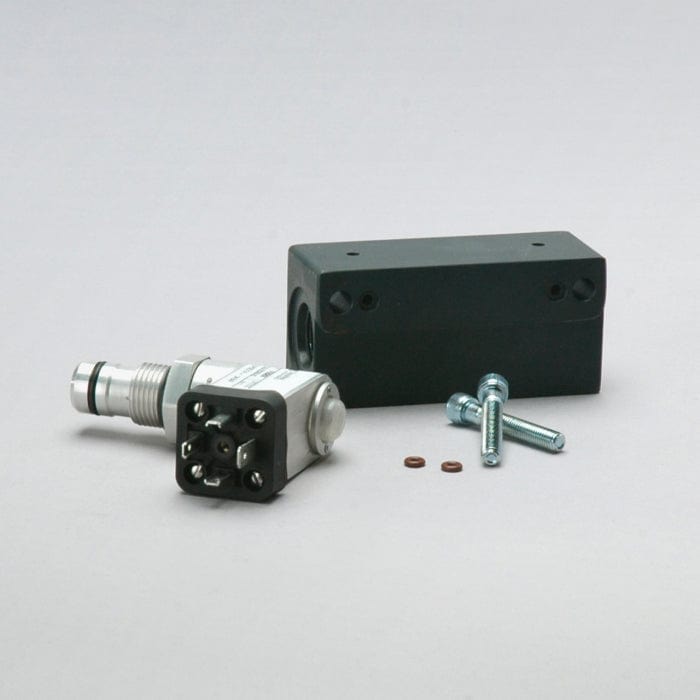

Hydraulic Indicator - Donaldson P569634

Hydraulic Indicator - Donaldson P569634

£746.71
£746.71
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P569634

Hydraulic Indicator
View full details

Specifications

Attributes

  • Length: 134.9 mm (5.31 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.4 bar (35 psi)
  • Style: Visual/Electrical
  • Indicator Actuation: 35 psid
  • Electrical Type: 115V AC / 28V DC
  • 2 AMP:
  • Connector Style: Hirschmann
  • Series: HPK02
  • HPK03:
  • HPK04:
  • HPK05:

Packaged Dimensions

  • Packaged Length: 0.095 m (3.80 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.145 m (5.80 inch)
  • Packaged Weight: 0.960 kg (2.12 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8543709099
  • UPC Code: 742330196922

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GROVE 4272916
LETOURNEAU 4158951
MANITOWOC 4272916
TAYLOR 4044673
