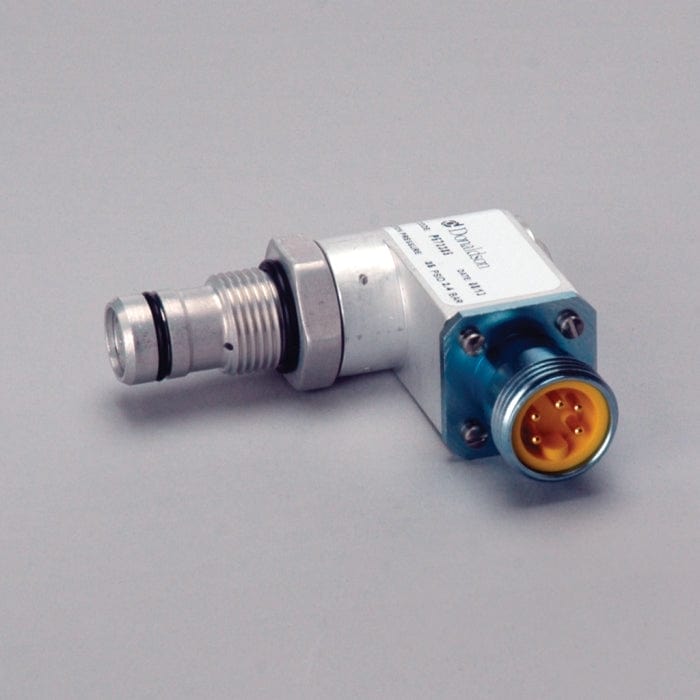

Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P572385

Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P572385

£572.84
£572.84
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P572385

Hydraulic Indicator Assembly, Visual/Electrical
Length 3.00 inch (76.2 mm)
Bypass Valve Yes
Bypass Valve Setting LR 35 psi (2.4 bar)
Style Visual/Electrical
Thermal Lockout Yes
Surge Control Yes
Seal Material Nitrile
Indicator Actuation 35 psid
Electrical Type 115V AC / 28V DC, 5 AMP
Connector Style Brad Harrison
Series W041, W440, W350, W451, W620
View full details

Specifications

Attributes

  • Length: 76.2 mm (3.00 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.4 bar (35 psi)
  • Style: Visual/Electrical
  • Thermal Lockout: Yes
  • Surge Control: Yes
  • Seal Material: Nitrile
  • Indicator Actuation: 35 psid
  • Electrical Type: 115V AC / 28V DC
  • 5 AMP:
  • Connector Style: Brad Harrison
  • Series: W041
  • W440:
  • W350:
  • W451:
  • W620:

Packaged Dimensions

  • Packaged Length: 0.070 m (2.80 inch)
  • Packaged Width: 0.081 m (3.25 inch)
  • Packaged Height: 0.029 m (1.15 inch)
  • Packaged Weight: 0.110 kg (0.24 lb)
  • Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 121570
  • HTS Code: 8543709099
  • UPC Code: 742330973899
