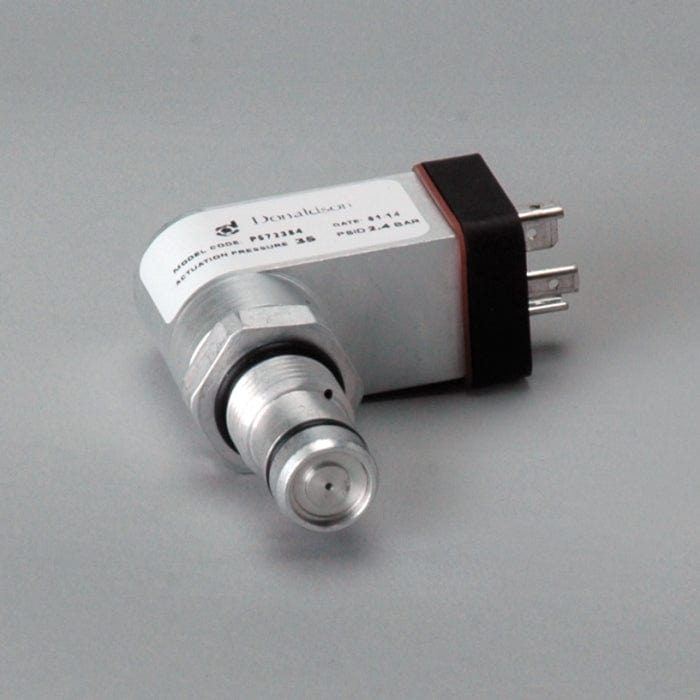

Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P572384

Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P572384

£567.95
£567.95
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P572384

Hydraulic Indicator Assembly, Visual/Electrical
View full details

Specifications

Attributes

  • Length: 76.2 mm (3.00 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 2.4 bar (35 psi)
  • Style: Visual/Electrical
  • Thermal Lockout: Yes
  • Surge Control: Yes
  • Seal Material: Nitrile
  • Indicator Actuation: 35 psid
  • Electrical Type: 115V AC / 28V DC
  • 5 AMP:
  • Connector Style: Hirschmann
  • Series: W023
  • W061:
  • W041:
  • W440:
  • W350:
  • W451:
  • W620:

Packaged Dimensions

  • Packaged Length: 0.080 m (3.20 inch)
  • Packaged Width: 0.080 m (3.20 inch)
  • Packaged Height: 0.100 m (4.00 inch)
  • Packaged Weight: 0.114 kg (0.25 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 121570
  • HTS Code: 8543709099
  • UPC Code: 742330964521
