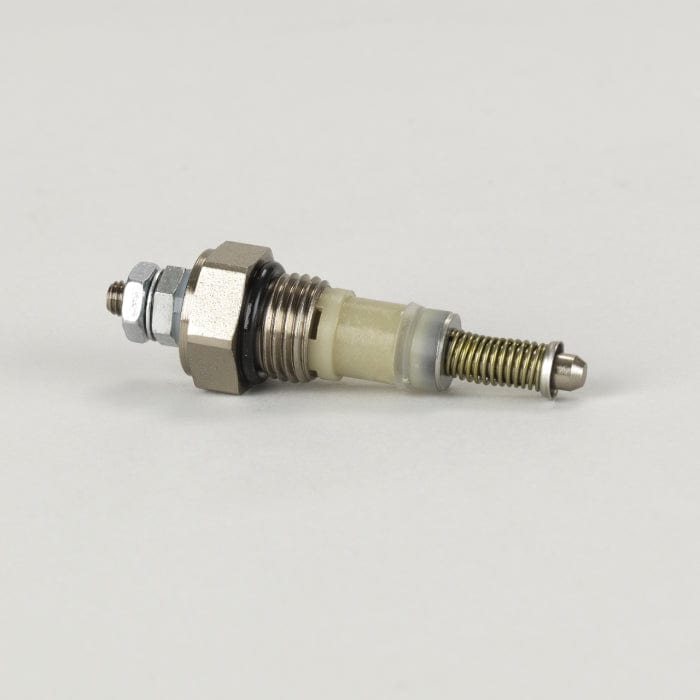

Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P162400
Hydraulic Indicator Assembly, Visual/Electrical - Donaldson P162400
Regular price
£21.34
Regular price
Sale price
£21.34
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P162400
Hydraulic Indicator Assembly, Visual/ElectricalShare
Collapsible content
Specifications
Attributes
- Length: 63.5 mm (2.50 inch)
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.72 bar (25 psi)
- Style: Electrical
- Indicator Actuation: 18 psid
- Electrical Type: DC
- Contact Type: Open
- Connector Style: Single Post
- Series: HBK05
- HMK04/24:
- HMK05/25:
Packaged Dimensions
- Packaged Length: 0.059 m (2.36 inch)
- Packaged Width: 0.020 m (0.79 inch)
- Packaged Height: 0.020 m (0.79 inch)
- Packaged Weight: 0.034 kg (0.08 lb)
- Packaged Volume: 0.000 m3 (0.00 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 121570
- HTS Code: 8543709099
- UPC Code: 742330015087
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 1053871M91 | |
| AGCO | 72527632 | |
| AGCO | 0072527632 | |
| ATHEY | P203980 | |
| ATLAS COPCO | 375713 | |
| BADGER | 76072655 | |
| BARBER-GREENE | 1090068 | |
| BELL | 225006 | |
| BLOUNT | 61102 | |
| BLOUNT | 30301065 | |
| BLOUNT | 30010947 | |
| BLOUNT | 842816700 | |
| BLOUNT | 24635042 | |
| BLOUNT | 0061102 | |
| BLOUNT | 10061102 | |
| BOBCAT | 6599364 | |
| CASE/CASE IH | A177604 | |
| CASE/CASE IH | A181991 | |
| CASE/CASE IH | N14595 | |
| CATERPILLAR | 30010947 | |
| CATERPILLAR | 842816700 | |
| CATERPILLAR | 10061102 | |
| CATERPILLAR | 6E4159 | |
| CATERPILLAR | 3I0533 | |
| CATERPILLAR | 30301065 | |
| CATERPILLAR | 7X8549 | |
| CATERPILLAR | 24635042 | |
| CHAMPION ROAD | 49437 | |
| CLARK | M6599364 | |
| CLARK | 244780 | |
| CLARK | 918893 | |
| CLARK | 6599364 | |
| CLARK,J.L. | 6599364 | |
| CLARK,J.L. | 244780 | |
| COMPACTION AMERICA | 0354624 | |
| DAEWOO | 55499084 | |
| DANA | 244781 | |
| DANA | 24478090 | |
| DITCH WITCH | GEO495 | |
| DITCH WITCH | 217765 | |
| DYNAPAC | 4700936899 | |
| ENGINE POWER SOURCE | 8032169 | |
| EUCLID | 6599364 | |
| EUCLID | 65993644 | |
| EUCLID | M6599364 | |
| EUCLID | 065993644 | |
| FMC | 2263899 | |
| GROVE | 9437100554 | |
| HAVAM | 28715 | |
| HYSTER | 354624 | |
| JACOBSEN | 556419 | |
| JOHN DEERE | 842816700 | |
| JOHN DEERE | 842816700J | |
| KERSHAW | 715930 | |
| MANITOWOC | 9437100554 | |
| MASSEY FERGUSON | 1053871M91 | |
| OMARK MATERIAL HANDLING | 24635042 | |
| P & H | 1079Z2180 | |
| RANSOMES | 556419 | |
| RAYGO | 7X8549 | |
| TAYLOR | 4044498 | |
| TENNANT | 65222 | |
| TEREX | 15250551 | |
| TIMBERJACK | 842816700 | |
| TORO | 866100 | |
| TORO | 866111 | |
| VERMEER | 286767001 | |
| VERMEER | 2867670011 | |
| VOLVO | 5130077 | |
| VOLVO | 6599364 | |
| WAGNER MINING EQUIPMENT | 375713 | |
| WALGAHN-MOTORENTECHN | 00810930 | |
| WALGAHN-MOTORENTECHN | 810930 |
