• Donaldson Hydraulic Indicator Assembly, Visual - Donaldson P171958
1 1

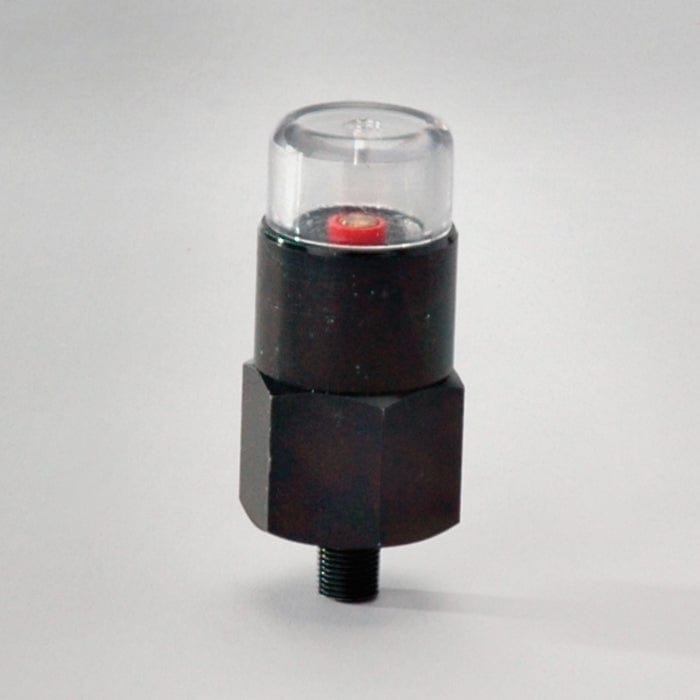

Hydraulic Indicator Assembly, Visual - Donaldson P171958

Hydraulic Indicator Assembly, Visual - Donaldson P171958

£24.48
£24.48
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171958

Hydraulic Indicator Assembly, Visual
Length 2.91 inch (74 mm)
Bypass Valve Yes
Bypass Valve Setting LR 3 psi (0.2 bar)
Style Visual
Type Pop-Up Button
Reset Function Auto
Indicator Actuation 17 psid
Series FIK
View full details

Specifications

Attributes

  • Length: 74 mm (2.91 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.2 bar (3 psi)
  • Style: Visual
  • Type: Pop-Up Button
  • Reset Function: Auto
  • Indicator Actuation: 17 psid
  • Series: FIK

Packaged Dimensions

  • Packaged Length: 0.039 m (1.57 inch)
  • Packaged Width: 0.039 m (1.57 inch)
  • Packaged Height: 0.079 m (3.15 inch)
  • Packaged Weight: 0.210 kg (0.46 lb)
  • Packaged Volume: 0.000 m3 (0.00 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 156600-07
  • HTS Code: 8479899790
  • UPC Code: 742330023136

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN AUGERS 8FL200291
ASTRA 121821
AVN HYDRAULICS 141200
CASE/CASE IH 79086283
FIAT 79086283
LIEBHERR 510669308
LOESING 140130
NEW HOLLAND 79086283
SAUER DANFOSS INC 1510475
SAUER GMBH 607351
SAUER SUNDSTRAND 1510425
U.C.M. 8509207
