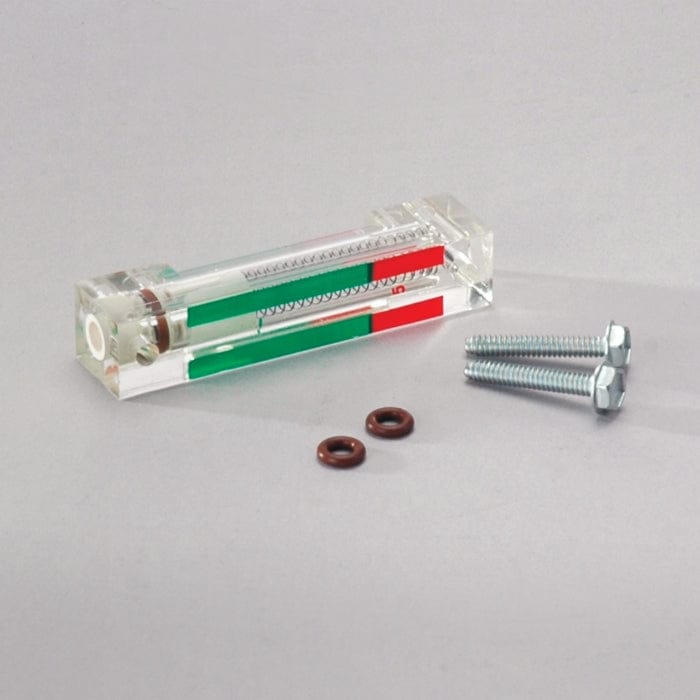

Hydraulic Indicator Assembly, Visual - Donaldson P162694

Hydraulic Indicator Assembly, Visual - Donaldson P162694

£30.40
£30.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P162694

Hydraulic Indicator Assembly, Visual
Length 2.50 inch (63.5 mm)
Bypass Valve Yes
Bypass Valve Setting LR 4 psi (0.3 bar)
Style Visual
Type Sliding Bar
Indicator Actuation 5 psid
Series HBK05
View full details

Specifications

Attributes

  • Length: 63.5 mm (2.50 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.3 bar (4 psi)
  • Style: Visual
  • Type: Sliding Bar
  • Indicator Actuation: 5 psid
  • Series: HBK05

Packaged Dimensions

  • Packaged Length: 0.069 m (2.76 inch)
  • Packaged Width: 0.020 m (0.79 inch)
  • Packaged Height: 0.010 m (0.39 inch)
  • Packaged Weight: 0.018 kg (0.04 lb)
  • Packaged Volume: 0.000 m3 (0.00 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8479899790
  • UPC Code: 742330015162

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1843
COLT 124948052
COMPACTION AMERICA 0385469
COMPACTION AMERICA 853531245
INGERSOLL RAND 59491175
KOEHRING 853531245
QUINCY COMPRESSOR 124948052
SKYJACK 59491175
TENNANT 124948
TENNANT 124948052
VOLVO 59491175
