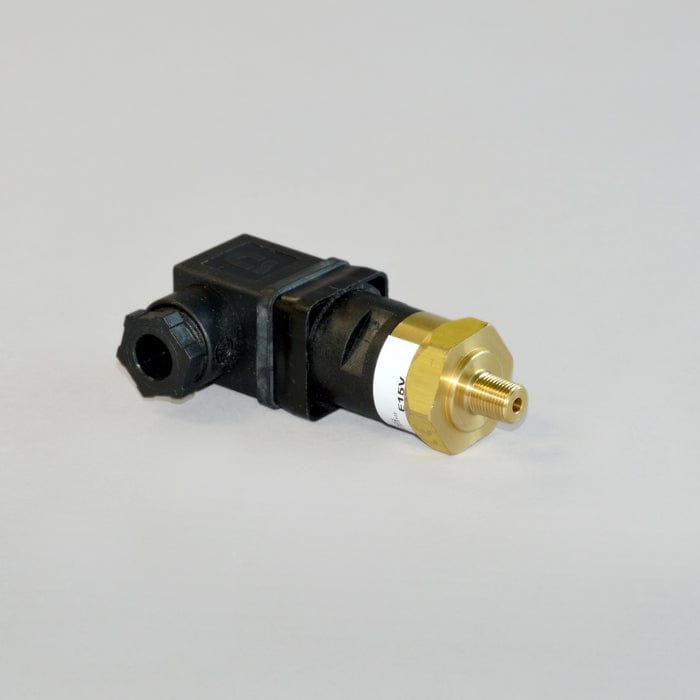

Hydraulic Indicator Assembly, Electrical - Donaldson X011061

Hydraulic Indicator Assembly, Electrical - Donaldson X011061

£230.47
£230.47
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson X011061

Hydraulic Indicator Assembly, Electrical
Thread Size 1/8 NPT
Length 1.85 inch (47 mm)
Bypass Valve Yes
Bypass Valve Setting LR 17 psi (1.2 bar)
Style Electrical
Indicator Actuation 18 psid
Electrical Type AC / DC
Contact Type Open/Closed
Connector Style Hirschmann
Series WL15, WL16
View full details

Specifications

Attributes

  • Thread Size: 1/8 NPT
  • Length: 47 mm (1.85 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.2 bar (17 psi)
  • Style: Electrical
  • Indicator Actuation: 18 psid
  • Electrical Type: AC / DC
  • Contact Type: Open/Closed
  • Connector Style: Hirschmann
  • Series: WL15
  • WL16:

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.143 m (5.70 inch)
  • Packaged Weight: 0.057 kg (0.13 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 123080
  • HTS Code: 8543709099
  • UPC Code: 742330987513
