• Donaldson Hydraulic Indicator Assembly, Electrical - Donaldson P575549
1 1

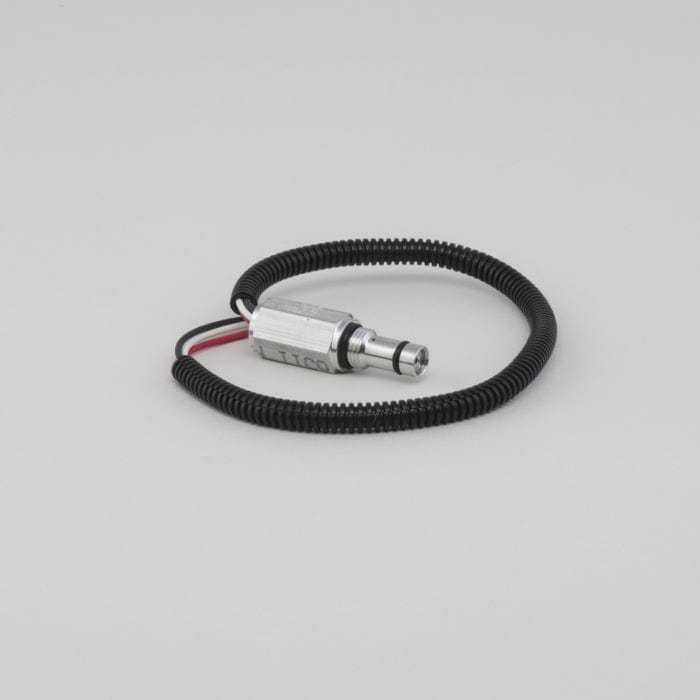

Hydraulic Indicator Assembly, Electrical - Donaldson P575549

Hydraulic Indicator Assembly, Electrical - Donaldson P575549

£63.16
£63.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P575549

Hydraulic Indicator Assembly, Electrical
View full details

Specifications

Attributes

  • Length: 63 mm (2.48 inch)
  • Style: Visual/Electrical
  • Indicator Actuation: 40 psid
  • Electrical Type: 6V - 30V DC
  • Contact Type: Open/Closed
  • Connector Style: 3-Wire Lead

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.118 m (4.72 inch)
  • Packaged Weight: 0.077 kg (0.17 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 121570
  • HTS Code: 8543709099
  • UPC Code: 742330988404
