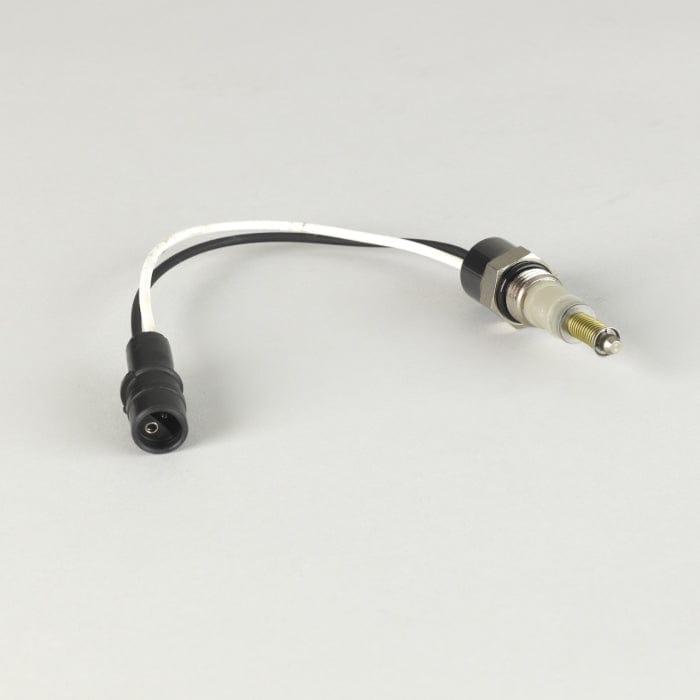

Hydraulic Indicator Assembly, Electrical - Donaldson P171143

Hydraulic Indicator Assembly, Electrical - Donaldson P171143

£96.63
£96.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171143

Hydraulic Indicator Assembly, Electrical
Length 8.70 inch (221 mm)
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Style Electrical
Indicator Actuation 25 psid
Electrical Type DC
Contact Type Open
Connector Style 2-Wire Cannon
Series HBK05, HMK03, HMK04/24, HMK05/25
View full details

Specifications

Attributes

  • Length: 221 mm (8.70 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Style: Electrical
  • Indicator Actuation: 25 psid
  • Electrical Type: DC
  • Contact Type: Open
  • Connector Style: 2-Wire Cannon
  • Series: HBK05
  • HMK03:
  • HMK04/24:
  • HMK05/25:

Packaged Dimensions

  • Packaged Length: 0.246 m (9.84 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.010 m (0.39 inch)
  • Packaged Weight: 0.043 kg (0.09 lb)
  • Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8543709099
  • UPC Code: 742330020739

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 1067067
COMPAIR 4311192
MORBARK 26838869
VERMEER 278634001
