Hydraulic Filter, Strainer - Donaldson P563305

Hydraulic Filter, Strainer - Donaldson P563305

£25.44
£25.44
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

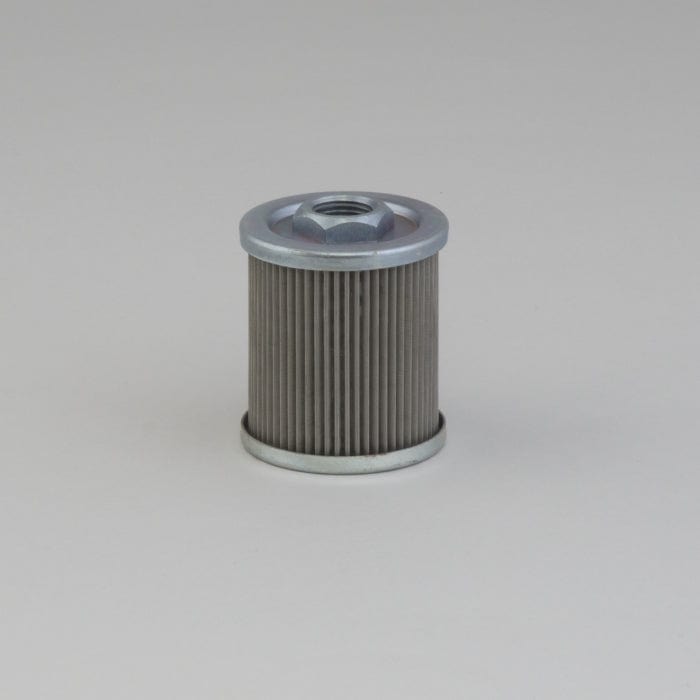

Donaldson P563305

Hydraulic Filter, Strainer
Outer Diameter 2.72 inch (69 mm)
Thread Size 1/2 NPT
Length 3.11 inch (79 mm)
Efficiency Beta 2 150 micron
Style Strainer
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 69 mm (2.72 inch)
  • Thread Size: 1/2 NPT
  • Length: 79 mm (3.11 inch)
  • Efficiency Beta 2: 150 micron
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.083 m (3.30 inch)
  • Packaged Width: 0.078 m (3.10 inch)
  • Packaged Height: 0.148 m (5.90 inch)
  • Packaged Weight: 0.213 kg (0.47 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330158135

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LHA SEH512100RV3
