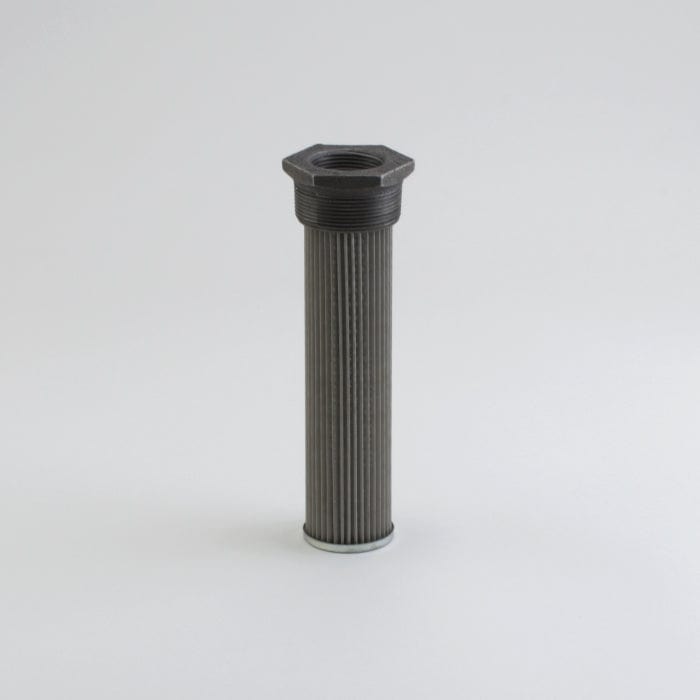

Hydraulic Filter, Strainer - Donaldson P562267

Hydraulic Filter, Strainer - Donaldson P562267

£34.61
£34.61
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P562267

Hydraulic Filter, Strainer
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 53.85 mm (2.12 inch)
  • Thread Size: 1 1/4 NPT
  • Length: 229.62 mm (9.04 inch)
  • Efficiency Beta 2: 149 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.4 bar (6 psi)
  • Style: Strainer
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.080 m (3.20 inch)
  • Packaged Width: 0.068 m (2.70 inch)
  • Packaged Height: 0.253 m (10.10 inch)
  • Packaged Weight: 0.502 kg (1.11 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330151440

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LHA TM25100RV5
